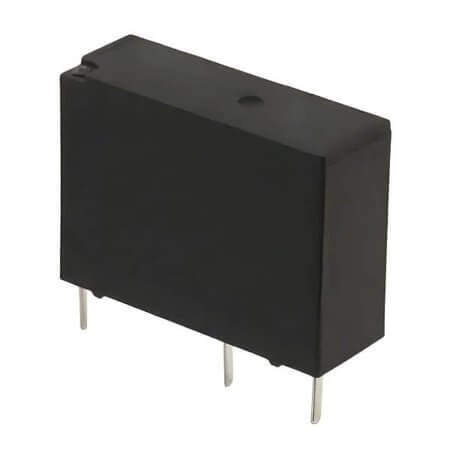

G5NB-1A-E-12 RELAY WITH POLE 3A 10KV

G5NB-1A-E-12 RELAY WITH POLE 3A 10KV Description

G5NB-1A-E-12 RELAY WITH POLE 3A 10KV G5NB-1A-E-12 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/30VDC and coil resistance of 720 Ohms. Features a coil power of 200mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 20.50mm, width 7.20mm, and height 15.30mm.Manufactured by OMRON and compliant with ROHS standards. Packaged as TRAY for convenience.

G5NB-1A-E-12 RELAY WITH POLE 3A 10KV Technical Specifications

• Manufacturer: OMRON
• RelayType: Relay Power
• Series: G5NB
• MountingType: THT
• ContactForm: SPST-NO (1 Form A)
• CoilType: Non Latching
• ContactCurrent(Nom): 5A
• ContactCurrent(Max): 7A
• CoilVoltage: 12VDC
• CoilCurrent: 16.70mA
• ContactVoltage: 250VAC/30VDC
• CoilResistance: 720 Ohms
• CoilPower: 200mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 4 Pin
• Length: 20.50mm
• Width: 7.20mm
• Height: 15.30mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
