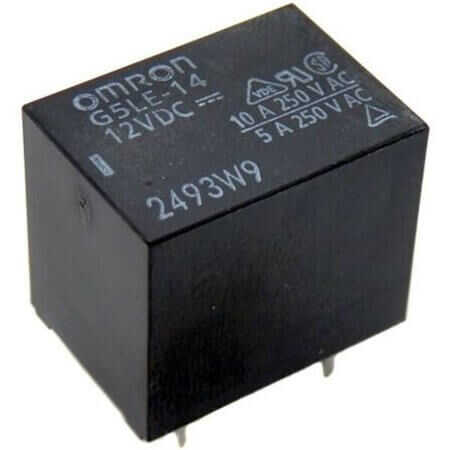

G5LE-14 DC12 RELAY POWER 10A 12VDC 1 FORMC SPDT

G5LE-14 DC12 RELAY POWER 10A 12VDC 1 FORMC SPDT Description

G5LE-14 DC12 RELAY POWER 10A 12VDC 1 FORMC SPDT G5LE-14 DC12 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/125VDC - Max and coil resistance of 360 Ohms. Features a coil power of 400mW and operates within a temperature range of -25°C~+85°C.Compact design with dimensions: length 21.60mm, width 15.60mm, and height 19.00mm.Manufactured by OMRON and compliant with ROHS standards. Packaged as TRAY for convenience.

G5LE-14 DC12 RELAY POWER 10A 12VDC 1 FORMC SPDT Technical Specifications

• Manufacturer: OMRON
• RelayType: Relay Power
• Series: G5LE
• MountingType: THT
• ContactForm: SPDT (1 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 10A
• ContactCurrent(Max):
• CoilVoltage: 12VDC
• CoilCurrent: 33.30mA
• ContactVoltage: 250VAC/125VDC - Max
• CoilResistance: 360 Ohms
• CoilPower: 400mW
• OperatingTemperature: -25°C~+85°C
• NumberofPins: 5 Pin
• Length: 21.60mm
• Width: 15.60mm
• Height: 19.00mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
