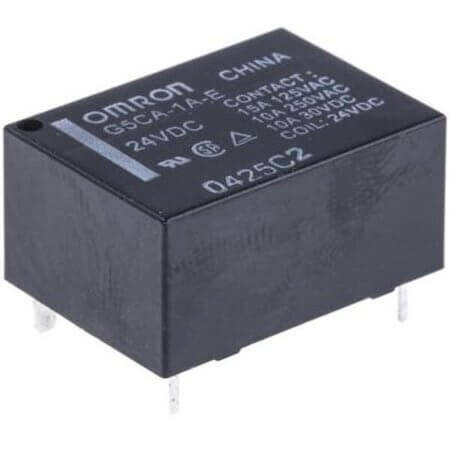

G5CA-1A-E DC24 RELAY 15A 24VDC 1FormA

G5CA-1A-E DC24 RELAY 15A 24VDC 1FormA Description

G5CA-1A-E DC24 RELAY 15A 24VDC 1FormA G5CA-1A-E DC24 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/125VDC - Max and coil resistance of 2.88K Ohms. Features a coil power of 200mW and operates within a temperature range of -25°C~+70°C.Compact design with dimensions: length 22.00mm, width 16.00mm, and height 11.00mm.Manufactured by OMRON and compliant with ROHS standards. Packaged as TUBE for convenience.

G5CA-1A-E DC24 RELAY 15A 24VDC 1FormA Technical Specifications

• Manufacturer: OMRON
• RelayType: Relay Power
• Series: G5CA
• MountingType: THT
• ContactForm: SPST-NO (1 Form A)
• CoilType: Non Latching
• ContactCurrent(Nom): 15A
• ContactCurrent(Max):
• CoilVoltage: 24VDC
• CoilCurrent: 8.30mA
• ContactVoltage: 250VAC/125VDC - Max
• CoilResistance: 2.88K Ohms
• CoilPower: 200mW
• OperatingTemperature: -25°C~+70°C
• NumberofPins: 4 Pin
• Length: 22.00mm
• Width: 16.00mm
• Height: 11.00mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
