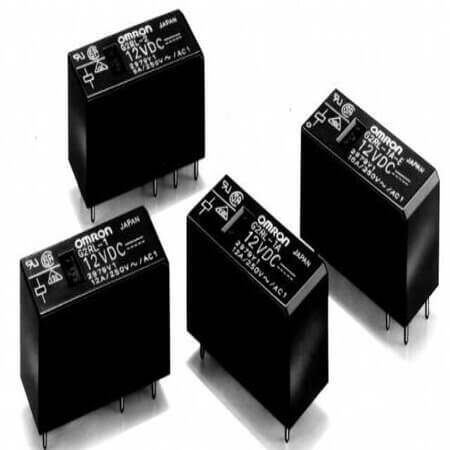

G2RL-2 DC12 RELAY 8A 12V DPDT OMRON

G2RL-2 DC12 RELAY 8A 12V DPDT OMRON Description

G2RL-2 DC12 RELAY 8A 12V DPDT OMRON G2RL-2 DC12 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/30VDC and coil resistance of 360 Ohms. Features a coil power of 400mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 29.00mm, width 12.70mm, and height 15.70mm.Manufactured by OMRON and compliant with ROHS standards. Packaged as BULK for convenience.

G2RL-2 DC12 RELAY 8A 12V DPDT OMRON Technical Specifications

• Manufacturer: OMRON
• RelayType: Relay Power
• Series: G2RL
• MountingType: THT
• ContactForm: DPDT (2 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 8A
• ContactCurrent(Max):
• CoilVoltage: 12VDC
• CoilCurrent: 33.30mA
• ContactVoltage: 250VAC/30VDC
• CoilResistance: 360 Ohms
• CoilPower: 400mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 8 Pin
• Length: 29.00mm
• Width: 12.70mm
• Height: 15.70mm
• Rohs: ROHS
• Packaging: BULK

---

You can click for product datasheet.
