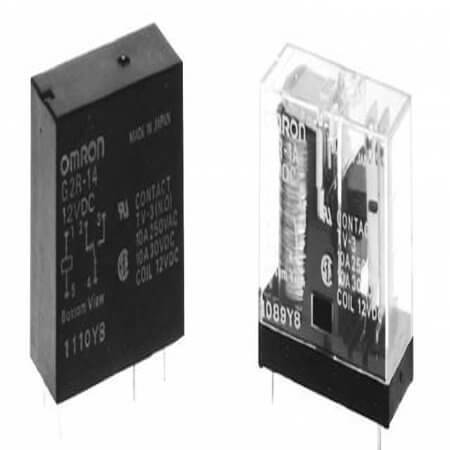

G2R-2-DC5 RELAY POWER 5A 5VDC 2P

G2R-2-DC5 RELAY POWER 5A 5VDC 2P Description

G2R-2-DC5 RELAY POWER 5A 5VDC 2P G2R-2-DC5 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/30VDC and coil resistance of 47 Ohms. Features a coil power of 530mW and operates within a temperature range of -40°C~+70°C.Compact design with dimensions: length 29.00mm, width 13.00mm, and height 25.50mm.Manufactured by OMRON and compliant with ROHS standards. Packaged as TRAY for convenience.

G2R-2-DC5 RELAY POWER 5A 5VDC 2P Technical Specifications

• Manufacturer: OMRON
• RelayType: Relay Power
• Series: G2R
• MountingType: THT
• ContactForm: DPDT (2 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 5A
• ContactCurrent(Max):
• CoilVoltage: 5VDC
• CoilCurrent: 106mA
• ContactVoltage: 250VAC/30VDC
• CoilResistance: 47 Ohms
• CoilPower: 530mW
• OperatingTemperature: -40°C~+70°C
• NumberofPins: 8 Pin
• Length: 29.00mm
• Width: 13.00mm
• Height: 25.50mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
