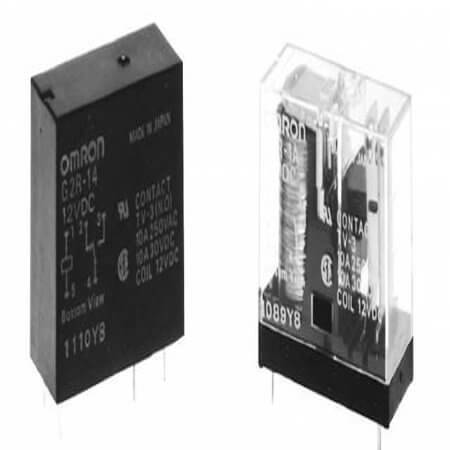

G2R-1-E-DC12 RELAY 16A 12VDC 1FormC SPDT

G2R-1-E-DC12 RELAY 16A 12VDC 1FormC SPDT Description

G2R-1-E-DC12 RELAY 16A 12VDC 1FormC SPDT G2R-1-E-DC12 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/30VDC and coil resistance of 275 Ohms. Features a coil power of 530mW and operates within a temperature range of -40°C~+70°C.Compact design with dimensions: length 29.00mm, width 13.00mm, and height 25.50mm.Manufactured by OMRON and compliant with ROHS standards. Packaged as TRAY for convenience.

G2R-1-E-DC12 RELAY 16A 12VDC 1FormC SPDT Technical Specifications

• Manufacturer: OMRON
• RelayType: Relay Power
• Series: G2R
• MountingType: THT
• ContactForm: SPDT (1 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 16A
• ContactCurrent(Max):
• CoilVoltage: 12VDC
• CoilCurrent: 43.60mA
• ContactVoltage: 250VAC/30VDC
• CoilResistance: 275 Ohms
• CoilPower: 530mW
• OperatingTemperature: -40°C~+70°C
• NumberofPins: 8 Pin
• Length: 29.00mm
• Width: 13.00mm
• Height: 25.50mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
