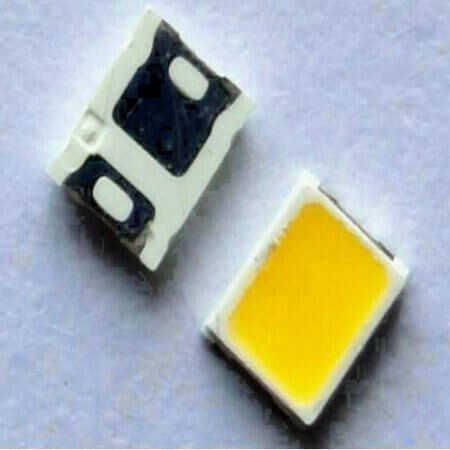

FYLS-2835NULWC-0.5W-C1-3 LED SMD 2835 CW 10000K-12000K 23 LM@60mA

FYLS-2835NULWC-0.5W-C1-3 LED SMD 2835 CW 10000K-12000K 23 LM@60mA Description

FYLS-2835NULWC-0.5W-C1-3 LED SMD 2835 CW 10000K-12000K 23 LM@60mA The FYLS-2835NULWC-0.5W-C1-3 is a high-quality product offering LED SMD 2835 CW 10000K-12000K 23 LM@60mA. With a shrink ratio of N/A and -30°C~+80°C operating temperature, it provides reliability in various applications.

FYLS-2835NULWC-0.5W-C1-3 LED SMD 2835 CW 10000K-12000K 23 LM@60mA Technical Specifications

• Manufacturer: FORYARD
• Color: Cool White
• MountingType: SMT
• Package/Case: 2835
• MountingStyle: Top View
• MaxPower: 500mW
• CCT: 10000-12000K
• Luminous Flux(25°C): 23lm
• Luminous Flux(85°C):
• Luminous Intensity(25°C): 10cd
• ForwardVoltage: 2.80-3.60V @ 25°C
• Forward Current: 100mA
• TestCurrent: 60mA
• CRI:
• ViewAngle: 120°
• ThermalResistance:
• Diameter:
• Length: 2.80mm
• Width: 3.50mm
• Height: 0.80mm
• OperatingTemperature: -30°C~+80°C
• Rohs: ROHS
• TAPE&REEL: TAPE&REEL
• ShrinkRatio:

---

You can click for product datasheet.
