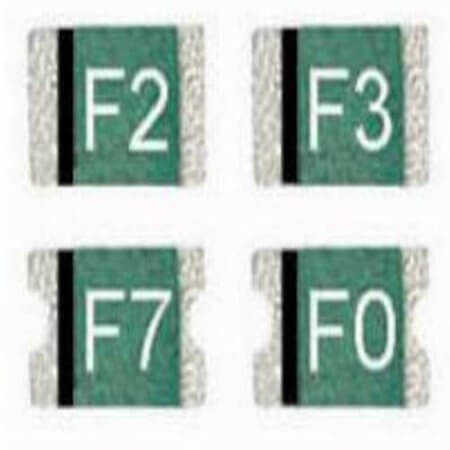

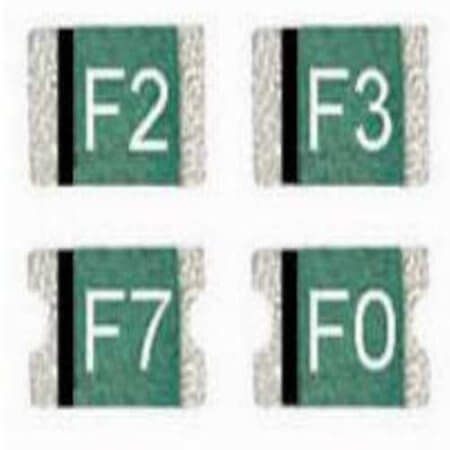

FSMD100-0603RZ THERMISTOR PTC RESETTABLE FUSE 0603 1A 6V

FSMD100-0603RZ THERMISTOR PTC RESETTABLE FUSE 0603 1A 6V Description

FSMD100-0603RZ THERMISTOR PTC RESETTABLE FUSE 0603 1A 6V The FSMD100-0603RZ, manufactured by FUZETEC, is a high-performance PTC resettable fuse designed for thermistor ptc resettable fuse 0603 1a 6v. It offers reliable overcurrent protection with a maximum voltage rating of 6V. The fuse features a trip time of 300ms, ensuring fast response to overcurrent events. Its compact dimensions of 1.60mm x 0.80mm x N/A allow for easy integration into various applications. Operating within a temperature range of -40°C~+85°C, it performs reliably in diverse environments. As a rohs-compliant product, it meets stringent environmental and safety standards. Packaged in tape&reel format, it ensures secure handling and storage. With its robust design and advanced features, the FSMD100-0603RZ is an excellent choice for professionals seeking reliable PTC fuse solutions.

FSMD100-0603RZ THERMISTOR PTC RESETTABLE FUSE 0603 1A 6V Technical Specifications

• Manufacturer: FUZETEC
• MountingType: SMT
• Package/Case: 0603 (1608 Metric)
• Pitch:
• Resistance(Min): 40m Ohms
• Resistance(Max): 120m Ohms
• Current-Hold: 1A
• Current-Trip: 1.8A
• Current(Max): 100A
• Voltage(Max): 6V
• Time-Trip: 300ms
• Applications:
• Diameter:
• Length: 1.60mm
• Width: 0.80mm
• Height:
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
