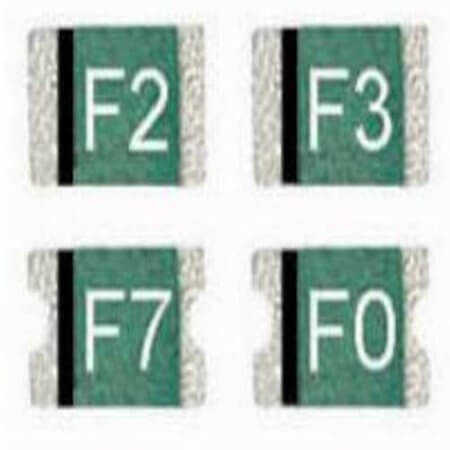

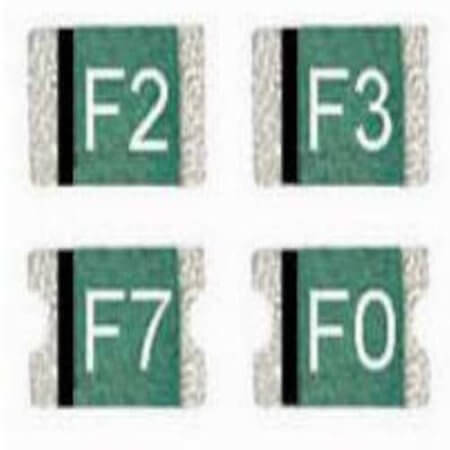

FSMD010-0805-R THERMISTOR PTC RESETTABLE FUSE 0805 100mA 15V

FSMD010-0805-R THERMISTOR PTC RESETTABLE FUSE 0805 100mA 15V Description

FSMD010-0805-R THERMISTOR PTC RESETTABLE FUSE 0805 100mA 15V The FSMD010-0805-R, manufactured by FUZETEC, is a high-performance PTC resettable fuse designed for thermistor ptc resettable fuse 0805 100ma 15v. It offers reliable overcurrent protection with a maximum voltage rating of 15V. The fuse features a trip time of 1.5s, ensuring fast response to overcurrent events. Its compact dimensions of 2.00mm x 1.25mm x N/A allow for easy integration into various applications. Operating within a temperature range of -40°C~+85°C, it performs reliably in diverse environments. As a rohs-compliant product, it meets stringent environmental and safety standards. Packaged in tape&reel format, it ensures secure handling and storage. With its robust design and advanced features, the FSMD010-0805-R is an excellent choice for professionals seeking reliable PTC fuse solutions.

FSMD010-0805-R THERMISTOR PTC RESETTABLE FUSE 0805 100mA 15V Technical Specifications

• Manufacturer: FUZETEC
• MountingType: SMT
• Package/Case: 0805 (2012 Metric)
• Pitch:
• Resistance(Min): 700m Ohms
• Resistance(Max): 6 Ohms
• Current-Hold: 100mA
• Current-Trip: 300mA
• Current(Max): 100A
• Voltage(Max): 15V
• Time-Trip: 1.5s
• Applications:
• Diameter:
• Length: 2.00mm
• Width: 1.25mm
• Height:
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
