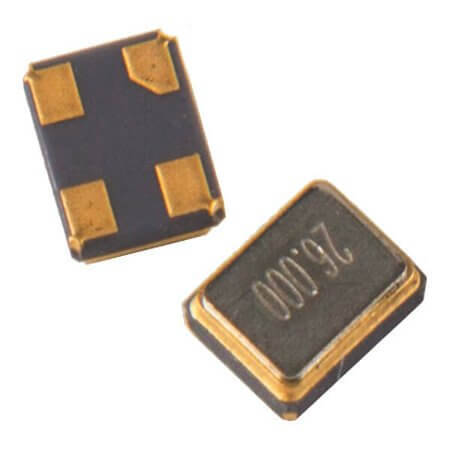

FA-128 32.0000MF20X-K3 CRYSTAL 32.0000MHZ 10PF SMD

FA-128 32.0000MF20X-K3 CRYSTAL 32.0000MHZ 10PF SMD Description

FA-128 32.0000MF20X-K3 CRYSTAL 32.0000MHZ 10PF SMD FA-128 32.0000MF20X-K3 is a high-performance crystal component that operates at a frequency of 32MHz with a frequency stability of ±20PPM.Features equivalent series resistance (ESR) of 60 Ohms. Compact dimensions: length 2.00mm, width 1.60mm, and height 0.50mm. Supports a temperature range of -40°C~+85°C for reliable performance. Manufactured by EPSON with compliance to ROHS standards. Packaged as TAPE&REEL for convenience.

FA-128 32.0000MF20X-K3 CRYSTAL 32.0000MHZ 10PF SMD Technical Specifications

• Manufacturer: EPSON
• MountingType: SMT
• Series: FA-128
• Package/Case: 4-SMD
• Frequency: 32MHz
• Capacitance: 10pF
• FrequencyTolerance: ±10PPM
• FrequencyStability: ±20PPM
• EquivalentSeriesResistance(ESR): 60 Ohms
• Applications:
• Diameter:
• Length: 2.00mm
• Width: 1.60mm
• Height: 0.50mm
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
