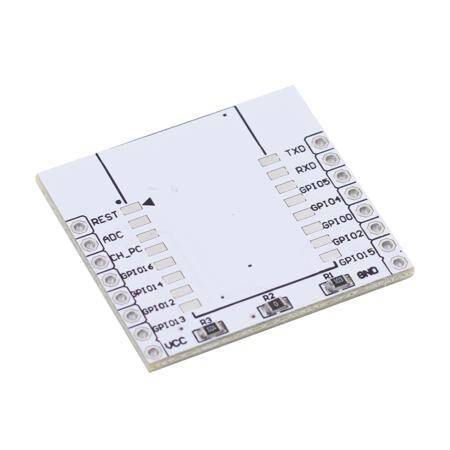

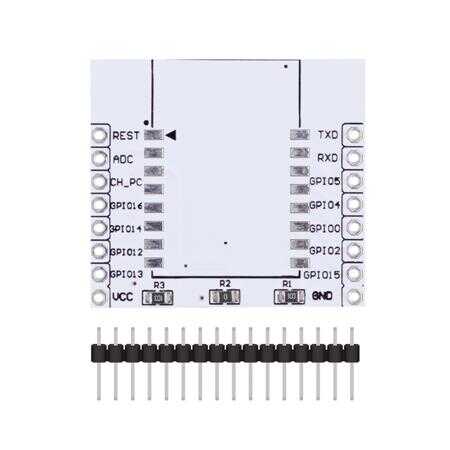

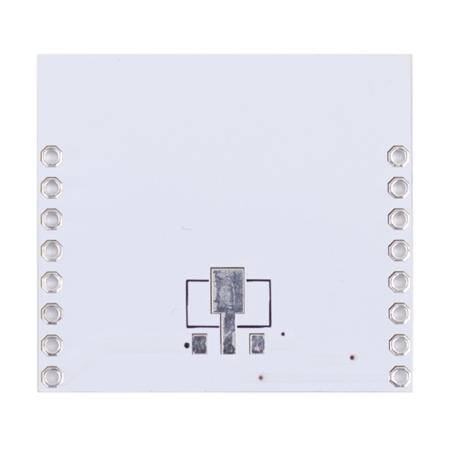

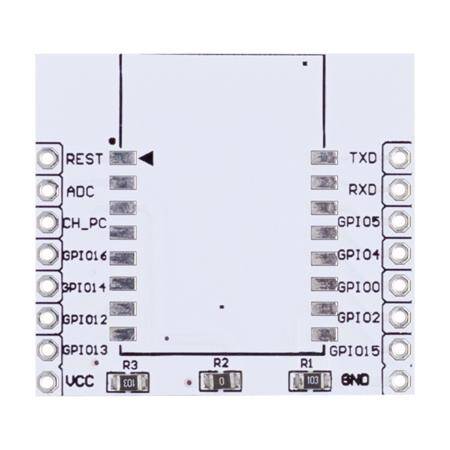

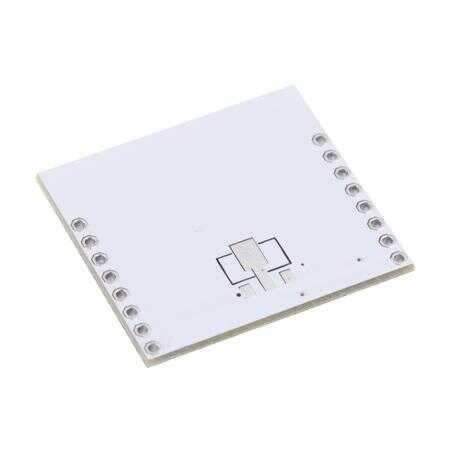

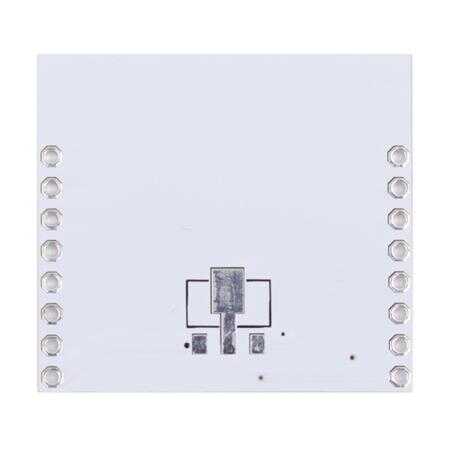

ESP8266 Serial WIFI Module Adapter Plate

ESP8266 Serial WIFI Module Adapter Plate Description

The ESP8266 Serial WIFI Module Adapter Plate is a convenient breakout board designed to simplify the integration of ESP8266 modules into your projects. With onboard voltage regulation and level shifting, it ensures compatibility between the ESP8266 module and a wide range of development platforms. This adapter plate provides easy access to all pins of the ESP8266 module, making it an essential tool for prototyping and IoT applications.

ESP8266 Serial WIFI Module Adapter Plate Features

• Onboard Voltage Regulation: Converts 5V input to 3.3V, ensuring safe operation of the ESP8266 module.
• Level Shifting: Protects the module by shifting logic levels between 5V systems and the ESP8266's 3.3V pins.
• Full Pin Access: Breaks out all ESP8266 module pins for easy interfacing.
• Compact Design: Small form factor for integration into space-constrained projects.
• Ease of Use: Simplifies the wiring and connection process, reducing setup time.

ESP8266 Serial WIFI Module Adapter Plate Specifications

• Compatibility: Works with ESP-01, ESP-12, and other ESP8266 modules
• Voltage Input: 5V (regulated to 3.3V for ESP8266)
• Logic Level: 5V to 3.3V level shifting for safe communication
• Interface: Pin headers for easy connection
• Dimensions: Compact and lightweight

ESP8266 Serial WIFI Module Adapter Plate Applications

• IoT Prototyping: Facilitates the development of WiFi-enabled devices.
• Home Automation: Ideal for integrating ESP8266 modules into smart home projects.
• Educational Projects: Simplifies learning and experimentation with ESP8266 modules.
• Embedded Systems: Ensures smooth operation in wireless communication setups.
• DIY Projects: Perfect for makers building custom IoT solutions.
