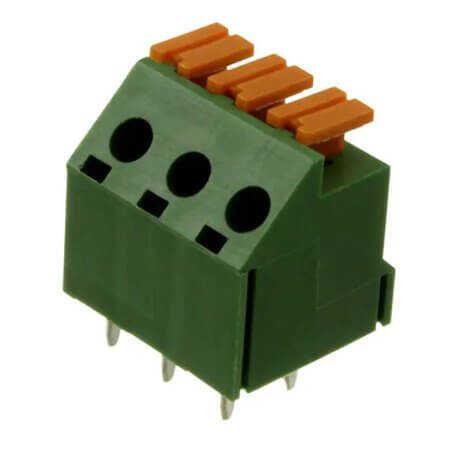

EM278503 TERM.BLK.5.00MM 3P 45C PCB TYPE

EM278503 TERM.BLK.5.00MM 3P 45C PCB TYPE Description

EM278503 TERM.BLK.5.00MM 3P 45C PCB TYPE EM278503 is a reliable and efficient PCB terminal that supports an operating temperature range of -40°C~+105°C. Designed for wire gauges 22-14 AWG (N/A). Constructed using UL94V-0 housing, Stainless Steel clamps, and Tin Plated+Brass pins for durability. Manufactured by EATON with compliance to ROHS standards. Packaged in BULK packaging for secure handling.

EM278503 TERM.BLK.5.00MM 3P 45C PCB TYPE Technical Specifications

• Manufacturer: EATON
• Series: Euro-Mag EM2785
• Gender: Male
• WireTermination: Screwless
• NumberofPins: 3 Pins
• NumberOfLevel: 1
• PositionsOfLevel: 3
• Pitch: 5.00mm
• MountingType: THT 45°
• WireEntry: 45°
• ProfileHeight: 14.70mm
• Current: 8.0A
• Voltage: 300V
• OperatingTemperature: -40°C~+105°C
• WireGauge(AWG): 22-14 AWG
• WireGauge(mm²): N/A
• HousingMaterial: UL94V-0
• ClampMaterial: Stainless Steel
• PinMaterial: Tin Plated+Brass
• Color: N/A
• Side: None
• Rohs: ROHS
• BULK: BULK

---

You can click for product datasheet.
