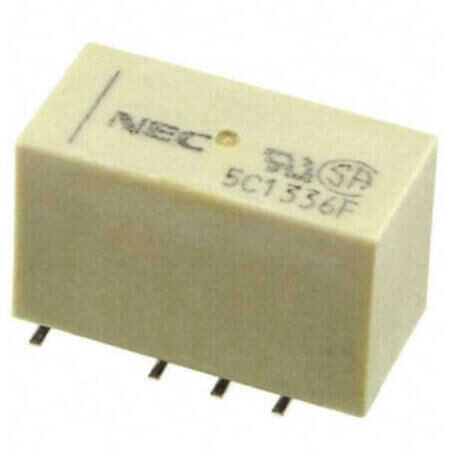

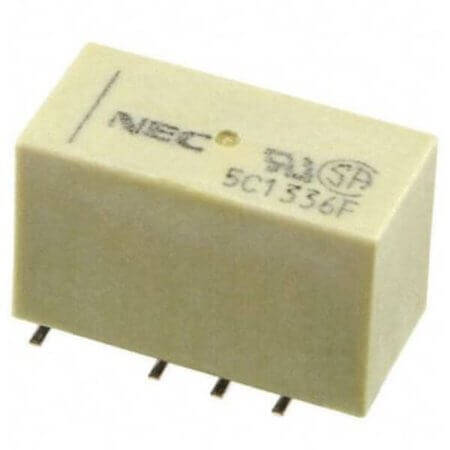

EE2-24NU-L- RELAY GEN PURPOSE DPDT 2A 24VDC

EE2-24NU-L- RELAY GEN PURPOSE DPDT 2A 24VDC Description

EE2-24NU-L- RELAY GEN PURPOSE DPDT 2A 24VDC EE2-24NU-L- is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/220VDC - Max and coil resistance of 2.88K Ohms. Features a coil power of 200mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 15.00mm, width 7.50mm, and height 10.00mm.Manufactured by KEMET and compliant with ROHS standards. Packaged as TAPE&REEL for convenience.

EE2-24NU-L- RELAY GEN PURPOSE DPDT 2A 24VDC Technical Specifications

• Manufacturer: KEMET
• RelayType: Relay Telecom
• Series: EE2
• MountingType: SMT
• ContactForm: DPDT (2 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 2A
• ContactCurrent(Max):
• CoilVoltage: 24VDC
• CoilCurrent:
• ContactVoltage: 250VAC/220VDC - Max
• CoilResistance: 2.88K Ohms
• CoilPower: 200mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 8 Pin
• Length: 15.00mm
• Width: 7.50mm
• Height: 10.00mm
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
