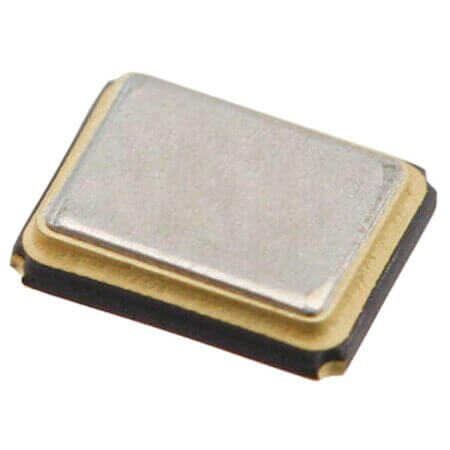

ECS-80-12-30-JGN-TR CRYSTAL 8.0000MHZ 12PF SMD

ECS-80-12-30-JGN-TR CRYSTAL 8.0000MHZ 12PF SMD Description

ECS-80-12-30-JGN-TR CRYSTAL 8.0000MHZ 12PF SMD ECS-80-12-30-JGN-TR is a high-performance crystal component that operates at a frequency of 8MHz with a frequency stability of ±30PPM.Features equivalent series resistance (ESR) of 100 Ohms. Compact dimensions: length 5.00mm, width 3.20mm, and height 1.10mm. Supports a temperature range of -40°C~+85°C for reliable performance. Manufactured by ECS with compliance to ROHS standards. Packaged as TAPE&REEL for convenience.

ECS-80-12-30-JGN-TR CRYSTAL 8.0000MHZ 12PF SMD Technical Specifications

• Manufacturer: ECS
• MountingType: SMT
• Series: ECX-53
• Package/Case: 2-SMD
• Frequency: 8MHz
• Capacitance: 12pF
• FrequencyTolerance: ±20PPM
• FrequencyStability: ±30PPM
• EquivalentSeriesResistance(ESR): 100 Ohms
• Applications: General Purpose
• Diameter:
• Length: 5.00mm
• Width: 3.20mm
• Height: 1.10mm
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
