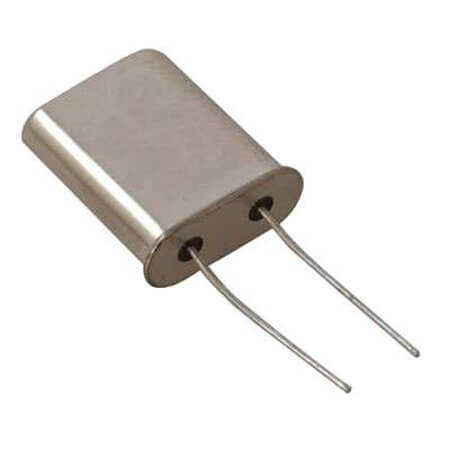

ECS-73-20-1 CRYSTAL 7.3728MHZ HC49U 20pF LONG BULK

ECS-73-20-1 CRYSTAL 7.3728MHZ HC49U 20pF LONG BULK Description

ECS-73-20-1 CRYSTAL 7.3728MHZ HC49U 20pF LONG BULK ECS-73-20-1 is a high-performance crystal component that operates at a frequency of 7.3728MHz with a frequency stability of ±50PPM.Features equivalent series resistance (ESR) of 40 Ohms. Compact dimensions: length 11.35mm, width 4.65mm, and height 13.46mm. Supports a temperature range of -10°C~+70°C for reliable performance. Manufactured by ECS with compliance to ROHS standards. Packaged as BULK for convenience.

ECS-73-20-1 CRYSTAL 7.3728MHZ HC49U 20pF LONG BULK Technical Specifications

• Manufacturer: ECS
• MountingType: THT
• Series: HC-49U
• Package/Case: HC-49U
• Frequency: 7.3728MHz
• Capacitance: 20pF
• FrequencyTolerance: ±30PPM
• FrequencyStability: ±50PPM
• EquivalentSeriesResistance(ESR): 40 Ohms
• Applications:
• Diameter:
• Length: 11.35mm
• Width: 4.65mm
• Height: 13.46mm
• OperatingTemperature: -10°C~+70°C
• Rohs: ROHS
• Packaging: BULK

---

You can click for product datasheet.
