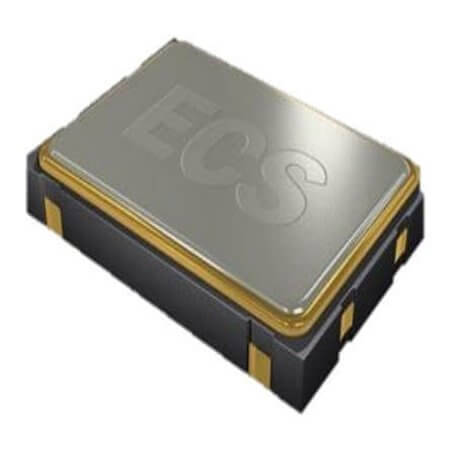

ECS-3953M-500-B-TR CRYSTAL OSC. 50MHZ SMD ECS

ECS-3953M-500-B-TR CRYSTAL OSC. 50MHZ SMD ECS Description

ECS-3953M-500-B-TR CRYSTAL OSC. 50MHZ SMD ECS The product ECS-3953M-500-B-TR (CRYSTAL OSC. 50MHZ SMD ECS) is a high-precision crystal oscillator designed for reliable frequency control. Manufactured by ECS, it offers a frequency stability of ±50PPM and operates at a supply voltage of 3.3V. The output type is HCMOS, making it versatile for various N/A applications. The compact design measures 7.00mm x 5.00mm x 1.70mm and performs reliably within a temperature range of -10°C~+70°C. Packaged in TAPE&REEL format and compliant with ROHS standards, it is an ideal choice for modern electronic systems.

ECS-3953M-500-B-TR CRYSTAL OSC. 50MHZ SMD ECS Technical Specifications

• Manufacturer: ECS
• MountingType: SMT
• Series: 3953M
• Package/Case: 4-SMD
• Frequency: 50MHz
• Capacitance: 15pF
• FrequencyTolerance:
• FrequencyStability: ±50PPM
• SupplyVoltage: 3.3V
• Output: HCMOS
• Applications:
• Length: 7.00mm
• Width: 5.00mm
• Height: 1.70mm
• OperatingTemperature: -10°C~+70°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
