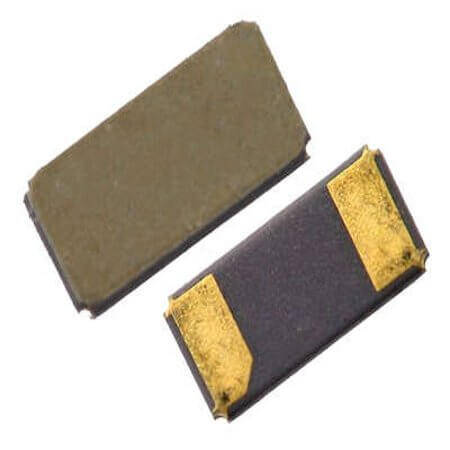

ECS-.327-CDX-1128 CRYSTAL 32.768KHZ 6.0PF SMD

ECS-.327-CDX-1128 CRYSTAL 32.768KHZ 6.0PF SMD Description

ECS-.327-CDX-1128 CRYSTAL 32.768KHZ 6.0PF SMD ECS-.327-CDX-1128 is a high-performance crystal component that operates at a frequency of 32.768KHz with a frequency stability of nan.Features equivalent series resistance (ESR) of 55K Ohms. Compact dimensions: length 3.20mm, width 1.50mm, and height 0.90mm. Supports a temperature range of -40°C~+85°C for reliable performance. Manufactured by ECS with compliance to ROHS standards. Packaged as TAPE&REEL for convenience.

ECS-.327-CDX-1128 CRYSTAL 32.768KHZ 6.0PF SMD Technical Specifications

• Manufacturer: ECS
• MountingType: SMT
• Series: CDX-1128
• Package/Case: 2-SMD
• Frequency: 32.768KHz
• Capacitance: 6pF
• FrequencyTolerance: ±20PPM
• FrequencyStability:
• EquivalentSeriesResistance(ESR): 55K Ohms
• Applications:
• Diameter:
• Length: 3.20mm
• Width: 1.50mm
• Height: 0.90mm
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
