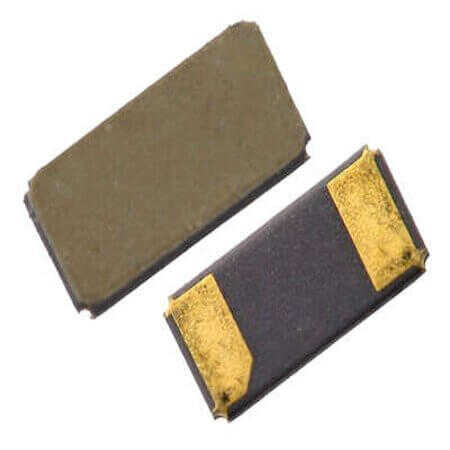

ECS-.327-CDX-1074 CRYSTAL 32.7680KHZ 9PF 60K OHM 2-SMD

ECS-.327-CDX-1074 CRYSTAL 32.7680KHZ 9PF 60K OHM 2-SMD Description

ECS-.327-CDX-1074 CRYSTAL 32.7680KHZ 9PF 60K OHM 2-SMD ECS-.327-CDX-1074 is a high-performance crystal component that operates at a frequency of 32.768KHz with a frequency stability of nan.Features equivalent series resistance (ESR) of 60K Ohms. Compact dimensions: length 2.00mm, width 1.20mm, and height 0.60mm. Supports a temperature range of -40°C~+85°C for reliable performance. Manufactured by ECS with compliance to ROHS standards. Packaged as TAPE&REEL for convenience.

ECS-.327-CDX-1074 CRYSTAL 32.7680KHZ 9PF 60K OHM 2-SMD Technical Specifications

• Manufacturer: ECS
• MountingType: SMT
• Series: CDX-1074
• Package/Case: 2-SMD
• Frequency: 32.768KHz
• Capacitance: 9pF
• FrequencyTolerance: ±20PPM
• FrequencyStability:
• EquivalentSeriesResistance(ESR): 60K Ohms
• Applications:
• Diameter:
• Length: 2.00mm
• Width: 1.20mm
• Height: 0.60mm
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
