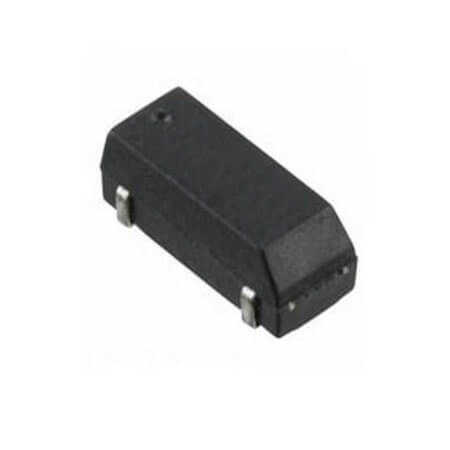

ECS-.327-9-34B-C-TR CRYSTAL 32.7680KHz 10ppm 9pF SMD

ECS-.327-9-34B-C-TR CRYSTAL 32.7680KHz 10ppm 9pF SMD Description

ECS-.327-9-34B-C-TR CRYSTAL 32.7680KHz 10ppm 9pF SMD ECS-.327-9-34B-C-TR is a high-performance crystal component that operates at a frequency of 32.768KHz with a frequency stability of nan.Features equivalent series resistance (ESR) of 70K Ohms. Compact dimensions: length 3.20mm, width 1.50mm, and height 0.90mm. Supports a temperature range of -40°C~+85°C for reliable performance. Manufactured by ECS with compliance to ROHS standards. Packaged as TAPE&REEL for convenience.

ECS-.327-9-34B-C-TR CRYSTAL 32.7680KHz 10ppm 9pF SMD Technical Specifications

• Manufacturer: ECS
• MountingType: SMT
• Series: ECX-306X
• Package/Case: 4-SOJ
• Frequency: 32.768KHz
• Capacitance: 9pF
• FrequencyTolerance: ±10PPM
• FrequencyStability:
• EquivalentSeriesResistance(ESR): 70K Ohms
• Applications:
• Diameter:
• Length: 3.20mm
• Width: 1.50mm
• Height: 0.90mm
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
