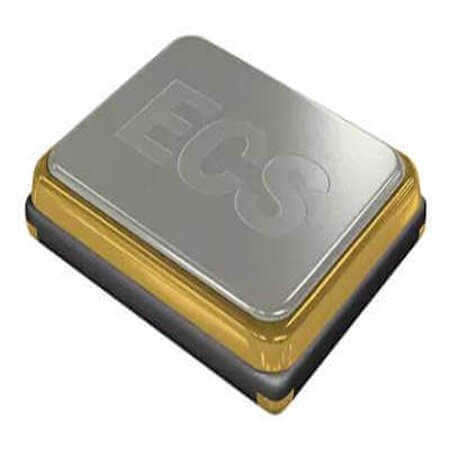

ECS-320-18-33Q-DS CRYSTAL 32MHZ 18pF SMD

ECS-320-18-33Q-DS CRYSTAL 32MHZ 18pF SMD Description

ECS-320-18-33Q-DS CRYSTAL 32MHZ 18pF SMD ECS-320-18-33Q-DS is a high-performance crystal component that operates at a frequency of 32MHz with a frequency stability of ±100PPM.Features equivalent series resistance (ESR) of 40 Ohms. Compact dimensions: length 3.20mm, width 2.50mm, and height 0.80mm. Supports a temperature range of -40°C~+125°C for reliable performance. Manufactured by ECS with compliance to ROHS standards. Packaged as TAPE&REEL for convenience.

ECS-320-18-33Q-DS CRYSTAL 32MHZ 18pF SMD Technical Specifications

• Manufacturer: ECS
• MountingType: SMT
• Series: ECX-33
• Package/Case: 4-SMD
• Frequency: 32MHz
• Capacitance: 18pF
• FrequencyTolerance: ±30PPM
• FrequencyStability: ±100PPM
• EquivalentSeriesResistance(ESR): 40 Ohms
• Applications: Automotive(AEC-Q200)
• Diameter:
• Length: 3.20mm
• Width: 2.50mm
• Height: 0.80mm
• OperatingTemperature: -40°C~+125°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
