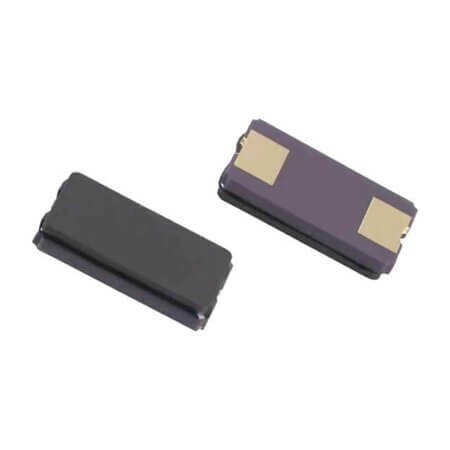

ECS-250-18-23A-EN-TR CRYSTAL 25MHZ 18PF SMD ECS INC.

ECS-250-18-23A-EN-TR CRYSTAL 25MHZ 18PF SMD ECS INC. Description

ECS-250-18-23A-EN-TR CRYSTAL 25MHZ 18PF SMD ECS INC. ECS-250-18-23A-EN-TR is a high-performance crystal component that operates at a frequency of 25MHz with a frequency stability of ±50PPM.Features equivalent series resistance (ESR) of 30 Ohms. Compact dimensions: length 6.00mm, width 3.50mm, and height 1.10mm. Supports a temperature range of -40°C~+85°C for reliable performance. Manufactured by ECS with compliance to ROHS standards. Packaged as TAPE&REEL for convenience.

ECS-250-18-23A-EN-TR CRYSTAL 25MHZ 18PF SMD ECS INC. Technical Specifications

• Manufacturer: ECS
• MountingType: SMT
• Series: ECX-64A
• Package/Case: 2-SMD
• Frequency: 25MHz
• Capacitance: 18pF
• FrequencyTolerance: ±30PPM
• FrequencyStability: ±50PPM
• EquivalentSeriesResistance(ESR): 30 Ohms
• Applications:
• Diameter:
• Length: 6.00mm
• Width: 3.50mm
• Height: 1.10mm
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
