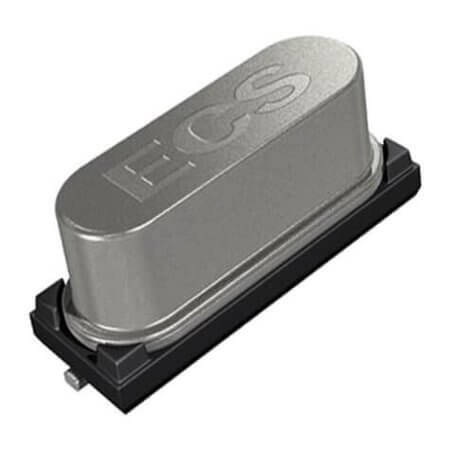

ECS-200-20-3X-TR CRYSTAL 20MHZ HC49S 20pF 30ppm

ECS-200-20-3X-TR CRYSTAL 20MHZ HC49S 20pF 30ppm Description

ECS-200-20-3X-TR CRYSTAL 20MHZ HC49S 20pF 30ppm ECS-200-20-3X-TR is a high-performance crystal component that operates at a frequency of 20MHz with a frequency stability of ±50PPM.Features equivalent series resistance (ESR) of 50 Ohms. Compact dimensions: length 7.00mm, width 4.10mm, and height 2.30mm. Supports a temperature range of -10°C~+70°C for reliable performance. Manufactured by ECS with compliance to ROHS standards. Packaged as TAPE&REEL for convenience.

ECS-200-20-3X-TR CRYSTAL 20MHZ HC49S 20pF 30ppm Technical Specifications

• Manufacturer: ECS
• MountingType: SMT
• Series: CSM-3X
• Package/Case: HC-49/USX
• Frequency: 20MHz
• Capacitance: 20pF
• FrequencyTolerance: ±30PPM
• FrequencyStability: ±50PPM
• EquivalentSeriesResistance(ESR): 50 Ohms
• Applications:
• Diameter:
• Length: 7.00mm
• Width: 4.10mm
• Height: 2.30mm
• OperatingTemperature: -10°C~+70°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
