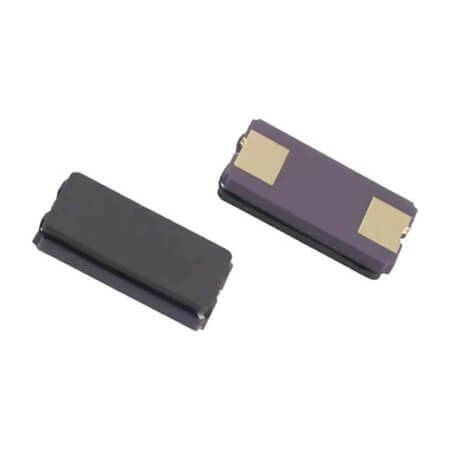

ECS-184-20-23A-EN-TR CRYSTAL 18.432MHZ 20PF ECX-64A

ECS-184-20-23A-EN-TR CRYSTAL 18.432MHZ 20PF ECX-64A Description

ECS-184-20-23A-EN-TR CRYSTAL 18.432MHZ 20PF ECX-64A ECS-184-20-23A-EN-TR is a high-performance crystal component that operates at a frequency of 18.432MHz with a frequency stability of ±50PPM.Features equivalent series resistance (ESR) of 60 Ohms. Compact dimensions: length 6.00mm, width 3.50mm, and height 1.10mm. Supports a temperature range of -40°C~+85°C for reliable performance. Manufactured by ECS with compliance to ROHS standards. Packaged as TAPE&REEL for convenience.

ECS-184-20-23A-EN-TR CRYSTAL 18.432MHZ 20PF ECX-64A Technical Specifications

• Manufacturer: ECS
• MountingType: SMT
• Series: ECX-64A
• Package/Case: 2-SMD
• Frequency: 18.432MHz
• Capacitance: 20pF
• FrequencyTolerance: ±30PPM
• FrequencyStability: ±50PPM
• EquivalentSeriesResistance(ESR): 60 Ohms
• Applications:
• Diameter:
• Length: 6.00mm
• Width: 3.50mm
• Height: 1.10mm
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
