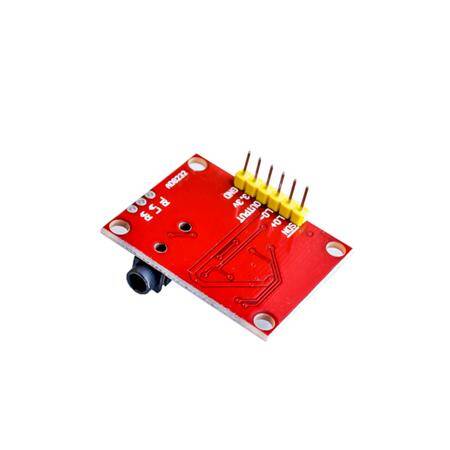

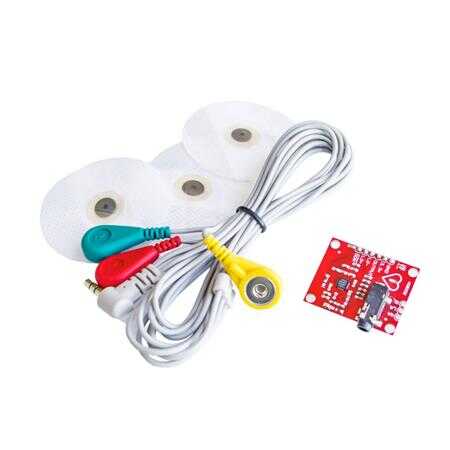

ECG Module AD8232 ECG Measurement Pulse Heart ECG Monitoring Sensor Module Kit

ECG Module AD8232 Description

The ECG Module AD8232 is a highly accurate and easy-to-use sensor designed for monitoring electrocardiogram (ECG) signals. It captures the electrical activity of the heart, providing vital information for heart rate monitoring, pulse detection, and overall cardiac health. This module is ideal for integrating into health devices, fitness trackers, or medical diagnostic tools. The AD8232 is compact, low-power, and compatible with microcontroller-based platforms such as Arduino, making it an excellent choice for both DIY and professional ECG monitoring applications.

ECG Module AD8232 Features

• Heart Rate Monitoring: Tracks heart rate, pulse, and ECG signals in real-time, offering an accurate measure of heart activity.
• Small and Efficient: The compact design allows for easy integration into wearable devices, fitness trackers, and medical devices.
• Low Power Consumption: Designed to be energy-efficient, making it ideal for long-term usage in battery-powered systems.
• Analog Signal Output: Provides an analog output, which can be processed by microcontrollers for further analysis and visualization.
• Simple Interface: Can be easily interfaced with microcontroller systems like Arduino and Raspberry Pi for immediate use in projects.

ECG Module AD8232 Specifications

• Measurement Type: Electrocardiogram (ECG) signals
• Output: Analog signal proportional to heart rate and ECG waveform
• Operating Voltage: 3.3V to 5V DC

ECG Module AD8232 Applications

• Wearable Health Devices: Ideal for continuous heart rate and pulse monitoring in fitness trackers and smartwatches.
• Medical Diagnostics: Useful in diagnostic tools for monitoring heart activity and diagnosing potential heart conditions.
• Fitness Tracking: Great for athletes or health enthusiasts who want to monitor their heart rate during workouts or activities.
• Heart Health Monitoring: Can be used for home-based ECG monitoring, providing vital heart health data to users or healthcare providers.
