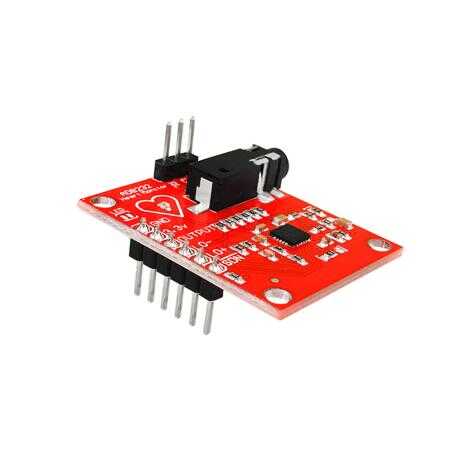

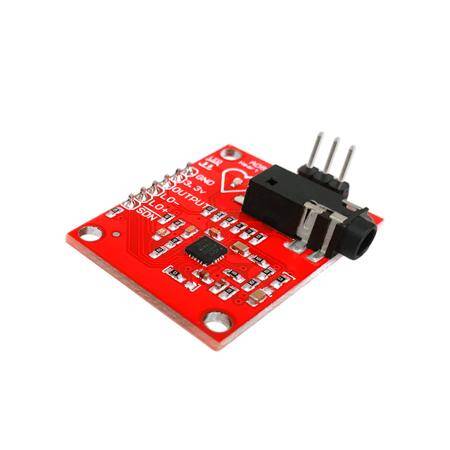

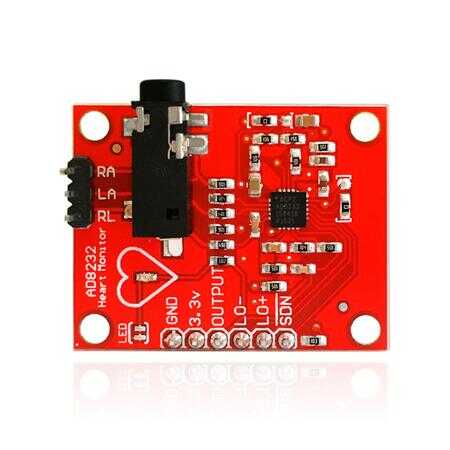

ECG Module AD8232 ECG Measurement Pulse Heart ECG Monitoring Sensor Module Kit

ECG Module AD8232 Description

The ECG Module AD8232 is a compact and easy-to-use sensor designed for electrocardiogram (ECG) measurement. This module allows for the monitoring of heart activity and pulse, providing essential data for heart rate and rhythm analysis. Based on the AD8232 ECG sensor, this module is ideal for use in wearable health devices, fitness trackers, or any system requiring real-time heart monitoring. It is especially suitable for projects that involve heart rate detection, ECG monitoring, or general cardiac health monitoring applications.

ECG Module AD8232 Features

• ECG Measurement: Monitors heart rate, rhythm, and electrical activity of the heart through electrocardiogram (ECG) signals.
• Compact and Lightweight: Small size and low power consumption, making it ideal for portable and wearable heart monitoring systems.
• Easy Integration: Compatible with microcontroller-based systems like Arduino, allowing for easy integration into health monitoring devices.
• Pulse Detection: Provides real-time pulse readings, making it useful for fitness and medical applications.
• Flexible Applications: Perfect for use in heart rate sensors, fitness trackers, medical diagnostics, and research applications.

ECG Module AD8232 Specifications

• Measurement Type: Electrocardiogram (ECG)
• Output: Analog output signal (ECG waveforms)
• Operating Voltage: 3.3V to 5V

ECG Module AD8232 Applications

• Heart Rate Monitoring: Used in heart rate monitors for detecting pulse rate and ECG signals in real-time.
• Wearable Health Devices: Can be integrated into wearable devices like fitness trackers and smartwatches for continuous heart health monitoring.
• Medical Diagnosis: Ideal for diagnostic devices that require accurate heart activity monitoring, such as portable ECG devices.
