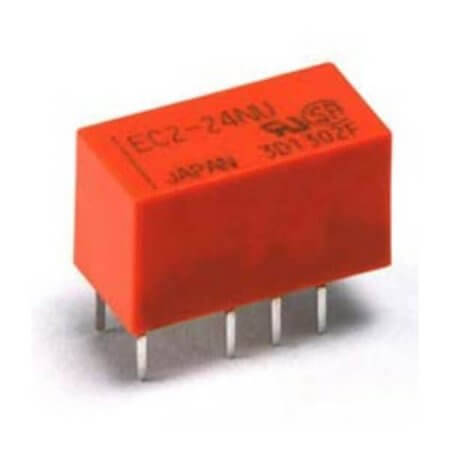

EC2-3TNU RELAY 2A 3VDC DPDT

EC2-3TNU RELAY 2A 3VDC DPDT Description

EC2-3TNU RELAY 2A 3VDC DPDT EC2-3TNU is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/220VDC - Max and coil resistance of 64.30 Ohms. Features a coil power of 140mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 15.00mm, width 7.50mm, and height 9.40mm.Manufactured by KEMET and compliant with ROHS standards. Packaged as TUBE for convenience.

EC2-3TNU RELAY 2A 3VDC DPDT Technical Specifications

• Manufacturer: KEMET
• RelayType: Relay Telecom
• Series: EC2
• MountingType: THT
• ContactForm: DPDT (2 Form C)
• CoilType: Latching, Dual Coil
• ContactCurrent(Nom): 2A
• ContactCurrent(Max):
• CoilVoltage: 3VDC
• CoilCurrent:
• ContactVoltage: 250VAC/220VDC - Max
• CoilResistance: 64.30 Ohms
• CoilPower: 140mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 10 Pin
• Length: 15.00mm
• Width: 7.50mm
• Height: 9.40mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
