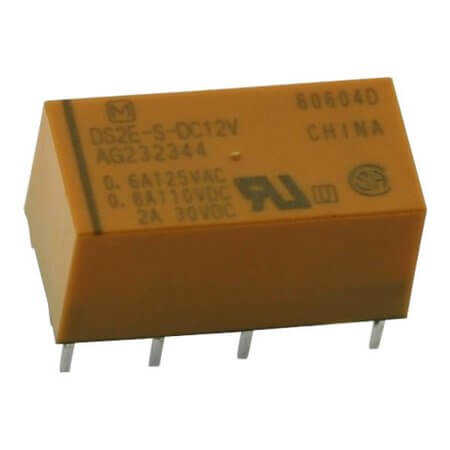

DS2E-S-DC12V RELAY 2A 12VDC 2PNC PANASONIC

DS2E-S-DC12V RELAY 2A 12VDC 2PNC PANASONIC Description

DS2E-S-DC12V RELAY 2A 12VDC 2PNC PANASONIC DS2E-S-DC12V is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/220VDC - Max and coil resistance of 720 Ohms. Features a coil power of 200mW and operates within a temperature range of -40°C~+70°C.Compact design with dimensions: length 20.00mm, width 9.90mm, and height 9.30mm.Manufactured by PANASONIC COMP. and compliant with ROHS standards. Packaged as TRAY for convenience.

DS2E-S-DC12V RELAY 2A 12VDC 2PNC PANASONIC Technical Specifications

• Manufacturer: PANASONIC COMP.
• RelayType: Relay General
• Series: DS
• MountingType: THT
• ContactForm: DPDT (2 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 2A
• ContactCurrent(Max):
• CoilVoltage: 12VDC
• CoilCurrent: 16.70mA
• ContactVoltage: 250VAC/220VDC - Max
• CoilResistance: 720 Ohms
• CoilPower: 200mW
• OperatingTemperature: -40°C~+70°C
• NumberofPins: 8 Pin
• Length: 20.00mm
• Width: 9.90mm
• Height: 9.30mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
