DRV5023AJQLPGMQ1 DIGITAL SWITCH UNIPOLAR SWITCH OPEN DRAIN

DRV5023AJQLPGMQ1 DIGITAL SWITCH UNIPOLAR SWITCH OPEN DRAIN Description

DRV5023AJQLPGMQ1 DIGITAL SWITCH UNIPOLAR SWITCH OPEN DRAIN The product DRV5023AJQLPGMQ1 (DIGITAL SWITCH UNIPOLAR SWITCH OPEN DRAIN) is a high-performance magnetic sensor designed for accurate and reliable measurements. Leveraging Hall Effect technology, it features an output type of Open Drain and operates within a supply voltage range of 2.7V to 38V. With a supply current of 2.7mA and an output current of 30mA, this sensor ensures efficient and stable operation. It supports a sensing range of 12mT Trip, 1mT Release and functions effectively across an operating temperature range of -40°C~+125°C. Packaged in TAPE&BOX format and compliant with ROHS standards, it is an excellent choice for modern electronic applications.

DRV5023AJQLPGMQ1 DIGITAL SWITCH UNIPOLAR SWITCH OPEN DRAIN Technical Specifications

• Manufacturer: TEXAS
• Features: Automotive Digital-Switch Hall Effect Sensor
• MountingType: THT

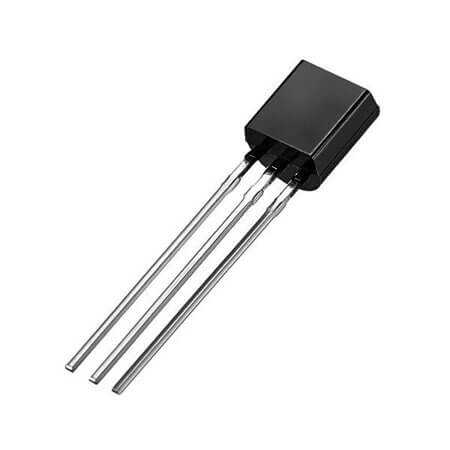

• Package/Case: TO92-3
• Function: Unipolar Switch
• OutputTime(Rise/Fall):
• ManyeticFluxDensity:
• Polarization: South Pole
• Technology: Hall Effect
• OutputType: Open Drain
• SupplyVoltage: 2.7V to 38V
• SupplyCurrent: 2.7mA
• CurrentOutput: 30mA
• OutputVoltage:
• SensingRange: 12mT Trip, 1mT Release
• OperatingTemperature: -40°C~+125°C
• Rohs: ROHS
• Packaging: TAPE&BOX

---

You can click for product datasheet.
