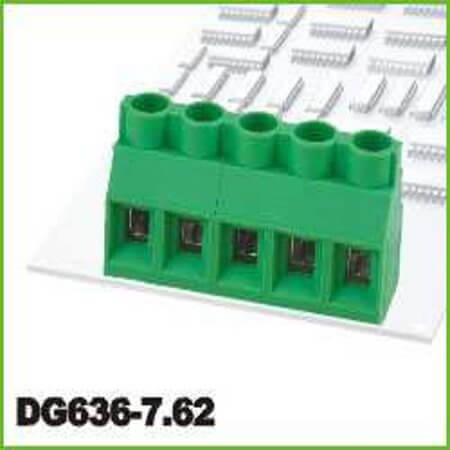

DG636-7.62-02P-14-00AH TERM.BLK.7.62MM 2P PCB TYPE GREEN

DG636-7.62-02P-14-00AH TERM.BLK.7.62MM 2P PCB TYPE GREEN Description

DG636-7.62-02P-14-00AH TERM.BLK.7.62MM 2P PCB TYPE GREEN DG636-7.62-02P-14-00AH is a reliable and efficient PCB terminal that supports an operating temperature range of -40°C~+105°C. Designed for wire gauges 26-10 AWG (4.0 mm²). Constructed using PA66+UL94V-0 housing, Brass+Ni Plated clamps, and Brass+Tin Plated pins for durability. Manufactured by DEGSON with compliance to ROHS standards. Packaged in BULK packaging for secure handling.

DG636-7.62-02P-14-00AH TERM.BLK.7.62MM 2P PCB TYPE GREEN Technical Specifications

• Manufacturer: DEGSON
• Series: DG636
• Gender: None
• WireTermination: Screw
• NumberofPins: 2 Pins
• NumberOfLevel: 1
• PositionsOfLevel: 2
• Pitch: 7.62mm
• MountingType: THT R/A
• WireEntry: 180°
• ProfileHeight: 21.50mm
• Current: 30.0A
• Voltage: 300V
• OperatingTemperature: -40°C~+105°C
• WireGauge(AWG): 26-10 AWG
• WireGauge(mm²): 4.0 mm²
• HousingMaterial: PA66+UL94V-0
• ClampMaterial: Brass+Ni Plated
• PinMaterial: Brass+Tin Plated
• Color: Green
• Side: None
• Rohs: ROHS
• BULK: BULK

---

You can click for product datasheet.
