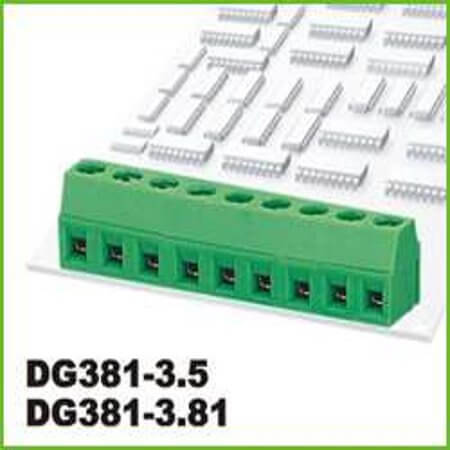

DG381-3.81-08P-14-00AH TERM.BLK.3.81MM 12P PCB TYPE GREEN

DG381-3.81-08P-14-00AH TERM.BLK.3.81MM 12P PCB TYPE GREEN Description

DG381-3.81-08P-14-00AH TERM.BLK.3.81MM 12P PCB TYPE GREEN DG381-3.81-08P-14-00AH is a reliable and efficient PCB terminal that supports an operating temperature range of -40°C~+105°C. Designed for wire gauges 26-16 AWG (1.0 mm²). Constructed using PA66+UL94V-0 housing, Brass+Ni Plated clamps, and Phosphor Bronze+Tin Plated pins for durability. Manufactured by DEGSON with compliance to ROHS standards. Packaged in BULK packaging for secure handling.

DG381-3.81-08P-14-00AH TERM.BLK.3.81MM 12P PCB TYPE GREEN Technical Specifications

• Manufacturer: DEGSON
• Series: DG381
• Gender: None
• WireTermination: Screw
• NumberofPins: 8 Pins
• NumberOfLevel: 1
• PositionsOfLevel: 8
• Pitch: 3.81mm
• MountingType: THT V/T
• WireEntry: 180°
• ProfileHeight: 8.60mm
• Current: 10.0A
• Voltage: 150V
• OperatingTemperature: -40°C~+105°C
• WireGauge(AWG): 26-16 AWG
• WireGauge(mm²): 1.0 mm²
• HousingMaterial: PA66+UL94V-0
• ClampMaterial: Brass+Ni Plated
• PinMaterial: Phosphor Bronze+Tin Plated
• Color: Green
• Side: None
• Rohs: ROHS
• BULK: BULK

---

You can click for product datasheet.
