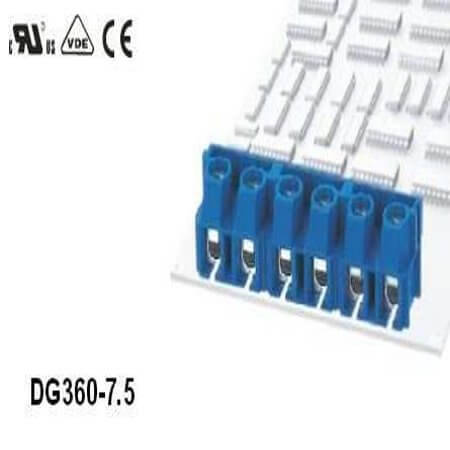

DG360-7.5-04P-12-00AH TERM.BLK.7.50MM 4P PCB TYPE BLUE

DG360-7.5-04P-12-00AH TERM.BLK.7.50MM 4P PCB TYPE BLUE Description

DG360-7.5-04P-12-00AH TERM.BLK.7.50MM 4P PCB TYPE BLUE DG360-7.5-04P-12-00AH is a reliable and efficient PCB terminal that supports an operating temperature range of -40°C~+105°C. Designed for wire gauges 22-14 AWG (2.5 mm²). Constructed using PBT+UL94V-0 housing, Stainless Steel clamps, and Brass+Tin Plated pins for durability. Manufactured by DEGSON with compliance to ROHS standards. Packaged in BULK packaging for secure handling.

DG360-7.5-04P-12-00AH TERM.BLK.7.50MM 4P PCB TYPE BLUE Technical Specifications

• Manufacturer: DEGSON
• Series: DG360
• Gender: None
• WireTermination: Screw
• NumberofPins: 4 Pins
• NumberOfLevel: 1
• PositionsOfLevel: 4
• Pitch: 7.50mm
• MountingType: THT V/T
• WireEntry: 180°
• ProfileHeight: 12.70mm
• Current: 15.0A
• Voltage: 300V
• OperatingTemperature: -40°C~+105°C
• WireGauge(AWG): 22-14 AWG
• WireGauge(mm²): 2.5 mm²
• HousingMaterial: PBT+UL94V-0
• ClampMaterial: Stainless Steel
• PinMaterial: Brass+Tin Plated
• Color: Blue
• Side: None
• Rohs: ROHS
• BULK: BULK

---

You can click for product datasheet.
