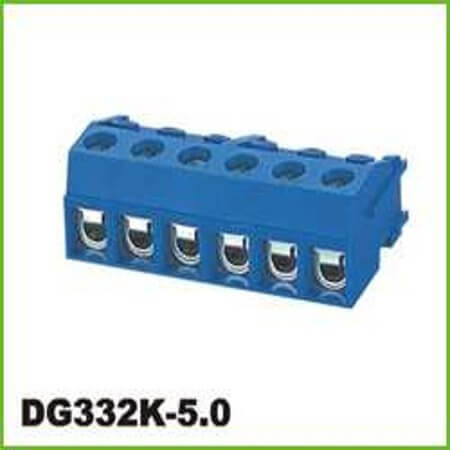

DG332K-5.0-02P-12-00AH TERM.BLK.5.00MM 2P SCREW TYPE BLUE

DG332K-5.0-02P-12-00AH TERM.BLK.5.00MM 2P SCREW TYPE BLUE Description

DG332K-5.0-02P-12-00AH TERM.BLK.5.00MM 2P SCREW TYPE BLUE DG332K-5.0-02P-12-00AH is a reliable and efficient PCB terminal that supports an operating temperature range of -40°C~+105°C. Designed for wire gauges 28-16 AWG (1.5 mm²). Constructed using PBT+UL94V-0 housing, Brass+Ni Plated clamps, and None pins for durability. Manufactured by DEGSON with compliance to ROHS standards. Packaged in BULK packaging for secure handling.

DG332K-5.0-02P-12-00AH TERM.BLK.5.00MM 2P SCREW TYPE BLUE Technical Specifications

• Manufacturer: DEGSON
• Series: DG332K
• Gender: Female
• WireTermination: Screw
• NumberofPins: 2 Pins
• NumberOfLevel: 1
• PositionsOfLevel: 2
• Pitch: 5.00mm
• MountingType: Free
• WireEntry: 180°
• ProfileHeight: 10.80mm
• Current: 10.0A
• Voltage: 300V
• OperatingTemperature: -40°C~+105°C
• WireGauge(AWG): 28-16 AWG
• WireGauge(mm²): 1.5 mm²
• HousingMaterial: PBT+UL94V-0
• ClampMaterial: Brass+Ni Plated
• PinMaterial: None
• Color: Blue
• Side: None
• Rohs: ROHS
• BULK: BULK

---
