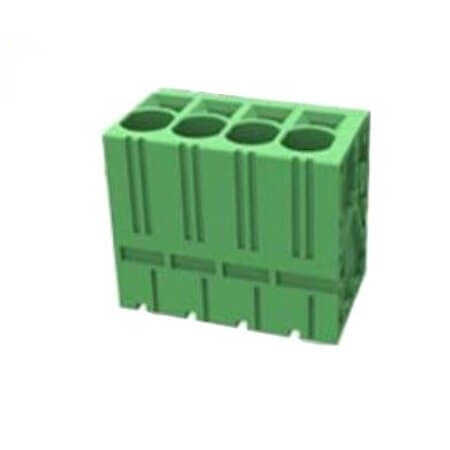

DG271V-7.5-DA-04P-14-00A TERM.BLK.7.5MM 4P PCB SPRING TYPE GREEN

DG271V-7.5-DA-04P-14-00A TERM.BLK.7.5MM 4P PCB SPRING TYPE GREEN Description

DG271V-7.5-DA-04P-14-00A TERM.BLK.7.5MM 4P PCB SPRING TYPE GREEN DG271V-7.5-DA-04P-14-00A is a reliable and efficient PCB terminal that supports an operating temperature range of -40°C~+105°C. Designed for wire gauges 24-8 AWG (0.2-6.0 mm²). Constructed using PA66+UL94V-0 housing, Stainless clamps, and Copper+Sn Plated pins for durability. Manufactured by DEGSON with compliance to ROHS standards. Packaged in BULK packaging for secure handling.

DG271V-7.5-DA-04P-14-00A TERM.BLK.7.5MM 4P PCB SPRING TYPE GREEN Technical Specifications

• Manufacturer: DEGSON
• Series: DG271V-7.5-DA
• Gender: Male
• WireTermination: None
• NumberofPins: 4 Pins
• NumberOfLevel: 1
• PositionsOfLevel: 4
• Pitch: 7.50mm
• MountingType: THT V/T
• WireEntry: 180°
• ProfileHeight: 24.15mm
• Current: 8.0A
• Voltage: 300V
• OperatingTemperature: -40°C~+105°C
• WireGauge(AWG): 24-8 AWG
• WireGauge(mm²): 0.2-6.0 mm²
• HousingMaterial: PA66+UL94V-0
• ClampMaterial: Stainless
• PinMaterial: Copper+Sn Plated
• Color: Green
• Side: None
• Rohs: ROHS
• BULK: BULK

---

You can click for product datasheet.
