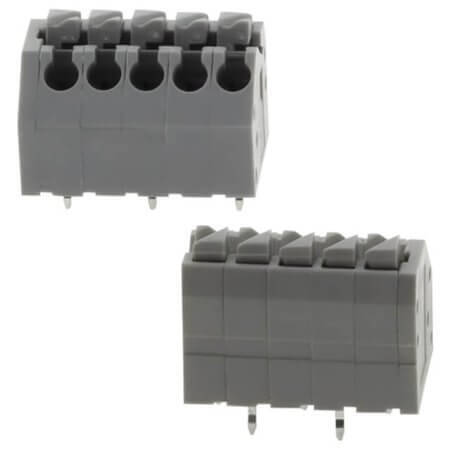

DG250-3.5-05P-11-01AH TERM.BLK.3.50MM 5P PCB TYPE GRAY

DG250-3.5-05P-11-01AH TERM.BLK.3.50MM 5P PCB TYPE GRAY Description

DG250-3.5-05P-11-01AH TERM.BLK.3.50MM 5P PCB TYPE GRAY DG250-3.5-05P-11-01AH is a reliable and efficient PCB terminal that supports an operating temperature range of -40°C~+105°C. Designed for wire gauges 22-18 AWG (0.2-0.75 mm²). Constructed using PA66+UL94V-0 housing, None clamps, and Phosphor Bronze+Tin Plated pins for durability. Manufactured by DEGSON with compliance to ROHS standards. Packaged in BULK packaging for secure handling.

DG250-3.5-05P-11-01AH TERM.BLK.3.50MM 5P PCB TYPE GRAY Technical Specifications

• Manufacturer: DEGSON
• Series: DG250
• Gender: None
• WireTermination: Screwless
• NumberofPins: 5 Pins
• NumberOfLevel: 1
• PositionsOfLevel: 5
• Pitch: 3.50mm
• MountingType: THT
• WireEntry: 45°
• ProfileHeight: 13.10mm
• Current: 7.0A
• Voltage: 300V
• OperatingTemperature: -40°C~+105°C
• WireGauge(AWG): 22-18 AWG
• WireGauge(mm²): 0.2-0.75 mm²
• HousingMaterial: PA66+UL94V-0
• ClampMaterial: None
• PinMaterial: Phosphor Bronze+Tin Plated
• Color: Gray
• Side: None
• Rohs: ROHS
• BULK: BULK

---

You can click for product datasheet.
