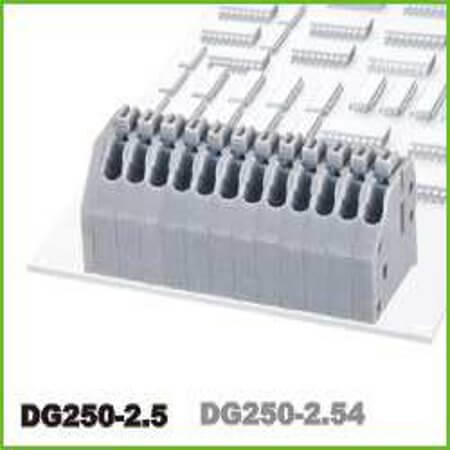

DG250-2.5-03P-11-00AH TERM.BLK.2.50MM 3P 45C PCB TYPE GRAY

DG250-2.5-03P-11-00AH TERM.BLK.2.50MM 3P 45C PCB TYPE GRAY Description

DG250-2.5-03P-11-00AH TERM.BLK.2.50MM 3P 45C PCB TYPE GRAY DG250-2.5-03P-11-00AH is a reliable and efficient PCB terminal that supports an operating temperature range of -40°C~+105°C. Designed for wire gauges 24-20 AWG (0.2-2.5 mm²). Constructed using PA66+UL94V-0 housing, Stainless Steel clamps, and Phosphor Bronze+Tin Plated pins for durability. Manufactured by DEGSON with compliance to ROHS standards. Packaged in BULK packaging for secure handling.

DG250-2.5-03P-11-00AH TERM.BLK.2.50MM 3P 45C PCB TYPE GRAY Technical Specifications

• Manufacturer: DEGSON
• Series: DG250
• Gender: None
• WireTermination: Screwless
• NumberofPins: 3 Pins
• NumberOfLevel: 1
• PositionsOfLevel: 3
• Pitch: 2.50mm
• MountingType: THT V/T
• WireEntry: 45°
• ProfileHeight: 13.00mm
• Current: 2.0A
• Voltage: 300V
• OperatingTemperature: -40°C~+105°C
• WireGauge(AWG): 24-20 AWG
• WireGauge(mm²): 0.2-2.5 mm²
• HousingMaterial: PA66+UL94V-0
• ClampMaterial: Stainless Steel
• PinMaterial: Phosphor Bronze+Tin Plated
• Color: Gray
• Side: None
• Rohs: ROHS
• BULK: BULK

---

You can click for product datasheet.
