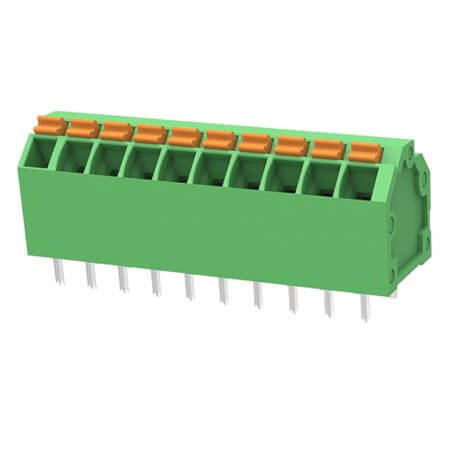

DG246-3.81-10P-14-00AH TERM.BLK.3.81MM 10P PCB SPRING-PRINT TYPE GREEN

DG246-3.81-10P-14-00AH TERM.BLK.3.81MM 10P PCB SPRING-PRINT TYPE GREEN Description

DG246-3.81-10P-14-00AH TERM.BLK.3.81MM 10P PCB SPRING-PRINT TYPE GREEN DG246-3.81-10P-14-00AH is a reliable and efficient PCB terminal that supports an operating temperature range of -40°C~+105°C. Designed for wire gauges 26-16 AWG (0.2-1.5 mm²). Constructed using PA66+UL94V-0 housing, N/A clamps, and Copper Alloy+Sn Plated pins for durability. Manufactured by DEGSON with compliance to ROHS standards. Packaged in BULK packaging for secure handling.

DG246-3.81-10P-14-00AH TERM.BLK.3.81MM 10P PCB SPRING-PRINT TYPE GREEN Technical Specifications

• Manufacturer: DEGSON
• Series: DG246
• Gender: Female
• WireTermination: Screwless
• NumberofPins: 10 Pins
• NumberOfLevel: 1
• PositionsOfLevel: 10
• Pitch: 3.81mm
• MountingType: THT 45°
• WireEntry: 45°
• ProfileHeight: 12.50mm
• Current: 10.0A
• Voltage: 300V
• OperatingTemperature: -40°C~+105°C
• WireGauge(AWG): 26-16 AWG
• WireGauge(mm²): 0.2-1.5 mm²
• HousingMaterial: PA66+UL94V-0
• ClampMaterial: N/A
• PinMaterial: Copper Alloy+Sn Plated
• Color: Green
• Side: None
• Rohs: ROHS
• BULK: BULK

---

You can click for product datasheet.
