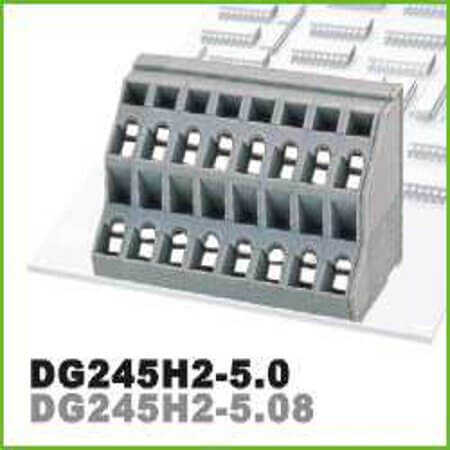

DG245H2-5.0-06P-11-00AH TERM.BLK.5.0MM 2x3P PCB SPRING TYPE GRAY

DG245H2-5.0-06P-11-00AH TERM.BLK.5.0MM 2x3P PCB SPRING TYPE GRAY Description

DG245H2-5.0-06P-11-00AH TERM.BLK.5.0MM 2x3P PCB SPRING TYPE GRAY DG245H2-5.0-06P-11-00AH is a reliable and efficient PCB terminal that supports an operating temperature range of -40°C~+105°C. Designed for wire gauges 28-12 AWG (2.5 mm²). Constructed using PA66+UL94V-0 housing, Stainless Steel clamps, and Phosphor Bronze/Red Copper+Tin Plated pins for durability. Manufactured by DEGSON with compliance to ROHS standards. Packaged in BULK packaging for secure handling.

DG245H2-5.0-06P-11-00AH TERM.BLK.5.0MM 2x3P PCB SPRING TYPE GRAY Technical Specifications

• Manufacturer: DEGSON
• Series: DG245H2
• Gender: None
• WireTermination: Screwless
• NumberofPins: 6 Pins
• NumberOfLevel: 2
• PositionsOfLevel: 3
• Pitch: 5.00mm
• MountingType: THT 45°
• WireEntry: 45°
• ProfileHeight: 26.50mm
• Current: 10.0A
• Voltage: 300V
• OperatingTemperature: -40°C~+105°C
• WireGauge(AWG): 28-12 AWG
• WireGauge(mm²): 2.5 mm²
• HousingMaterial: PA66+UL94V-0
• ClampMaterial: Stainless Steel
• PinMaterial: Phosphor Bronze/Red Copper+Tin Plated
• Color: Gray
• Side: None
• Rohs: ROHS
• BULK: BULK

---

You can click for product datasheet.
