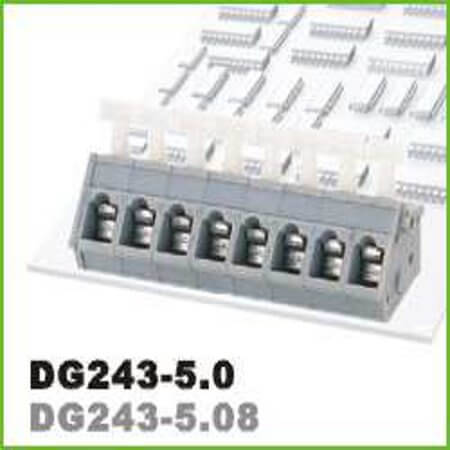

DG243-5.0-08P-11-00AH TERM.BLK.5.00MM 8P PCB TYPE

DG243-5.0-08P-11-00AH TERM.BLK.5.00MM 8P PCB TYPE Description

DG243-5.0-08P-11-00AH TERM.BLK.5.00MM 8P PCB TYPE DG243-5.0-08P-11-00AH is a reliable and efficient PCB terminal that supports an operating temperature range of -40°C~+105°C. Designed for wire gauges 28-12 AWG (0.2-2.5 mm²). Constructed using PA66+UL94V-0 housing, Brass+Ni Plated clamps, and Brass+Tin Plated pins for durability. Manufactured by DEGSON with compliance to ROHS standards. Packaged in BULK packaging for secure handling.

DG243-5.0-08P-11-00AH TERM.BLK.5.00MM 8P PCB TYPE Technical Specifications

• Manufacturer: DEGSON
• Series: DG243
• Gender: None
• WireTermination: Screwless
• NumberofPins: 8 Pins
• NumberOfLevel: 1
• PositionsOfLevel: 8
• Pitch: 5.00mm
• MountingType: THT
• WireEntry: 45°
• ProfileHeight: 18.74mm
• Current: 15.0A
• Voltage: 300V
• OperatingTemperature: -40°C~+105°C
• WireGauge(AWG): 28-12 AWG
• WireGauge(mm²): 0.2-2.5 mm²
• HousingMaterial: PA66+UL94V-0
• ClampMaterial: Brass+Ni Plated
• PinMaterial: Brass+Tin Plated
• Color: Gray
• Side: None
• Rohs: ROHS
• BULK: BULK

---

You can click for product datasheet.
