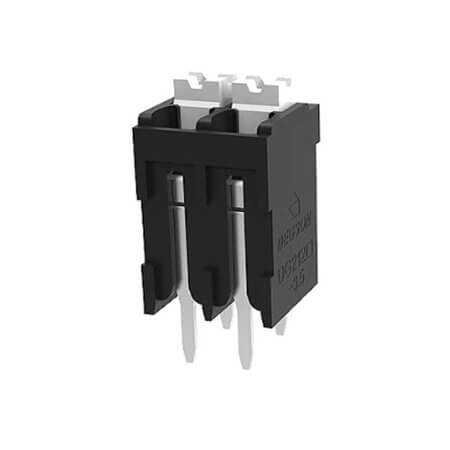

DG212V-THR-3.5-02P-13-10 TERM.BLK.3.50MM 2P PCB SPRING TYPE

DG212V-THR-3.5-02P-13-10 TERM.BLK.3.50MM 2P PCB SPRING TYPE Description

DG212V-THR-3.5-02P-13-10 TERM.BLK.3.50MM 2P PCB SPRING TYPE DG212V-THR-3.5-02P-13-10 is a reliable and efficient PCB terminal that supports an operating temperature range of -40°C~+130°C. Designed for wire gauges 28-14 AWG (0.2-1.5 mm²). Constructed using PA4T+UL94V-0 housing, None clamps, and Copper Alloy+Sn Plated pins for durability. Manufactured by DEGSON with compliance to ROHS standards. Packaged in BULK packaging for secure handling.

DG212V-THR-3.5-02P-13-10 TERM.BLK.3.50MM 2P PCB SPRING TYPE Technical Specifications

• Manufacturer: DEGSON
• Series: DG212V-THR
• Gender: Male
• WireTermination: Screwless
• NumberofPins: 2 Pins
• NumberOfLevel: 1
• PositionsOfLevel: 2
• Pitch: 3.50mm
• MountingType: THT V/T
• WireEntry: 180°
• ProfileHeight: 13.80mm
• Current: 12.0A
• Voltage: 300V
• OperatingTemperature: -40°C~+130°C
• WireGauge(AWG): 28-14 AWG
• WireGauge(mm²): 0.2-1.5 mm²
• HousingMaterial: PA4T+UL94V-0
• ClampMaterial: None
• PinMaterial: Copper Alloy+Sn Plated
• Color: Black
• Side: None
• Rohs: ROHS
• BULK: BULK

---

You can click for product datasheet.
