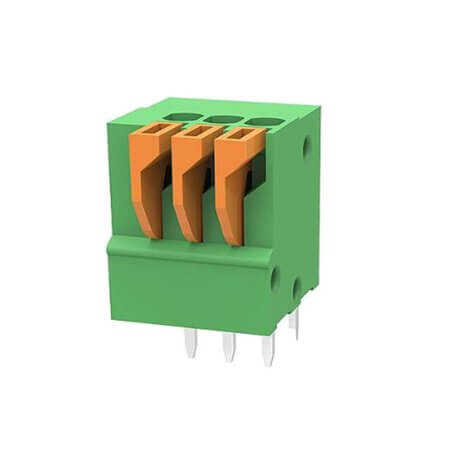

DG141V-2.54-03P-14-00AH TERM.BLK.2.54MM 3P PCB SPRING TYPE

DG141V-2.54-03P-14-00AH TERM.BLK.2.54MM 3P PCB SPRING TYPE Description

DG141V-2.54-03P-14-00AH TERM.BLK.2.54MM 3P PCB SPRING TYPE DG141V-2.54-03P-14-00AH is a reliable and efficient PCB terminal that supports an operating temperature range of -40°C~+105°C. Designed for wire gauges 24-20 AWG (0.2-1.0 mm²). Constructed using PA66+5%GF housing, Stainless Steel clamps, and Brass+Tin Plated pins for durability. Manufactured by DEGSON with compliance to ROHS standards. Packaged in BULK packaging for secure handling.

DG141V-2.54-03P-14-00AH TERM.BLK.2.54MM 3P PCB SPRING TYPE Technical Specifications

• Manufacturer: DEGSON
• Series: DG141V
• Gender: None
• WireTermination: Screwless
• NumberofPins: 3 Pins
• NumberOfLevel: 1
• PositionsOfLevel: 3
• Pitch: 2.54mm
• MountingType: THT V/T
• WireEntry: 180°
• ProfileHeight: 13.60mm
• Current: 2.0A
• Voltage: 150V
• OperatingTemperature: -40°C~+105°C
• WireGauge(AWG): 24-20 AWG
• WireGauge(mm²): 0.2-1.0 mm²
• HousingMaterial: PA66+5%GF
• ClampMaterial: Stainless Steel
• PinMaterial: Brass+Tin Plated
• Color: Green
• Side: None
• Rohs: ROHS
• BULK: BULK

---

You can click for product datasheet.
