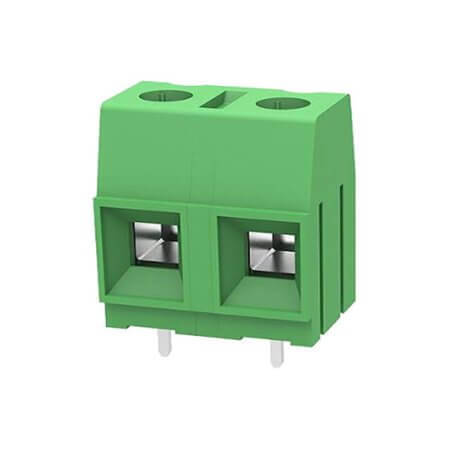

DG136T-12.7-02P-14-00AH TERM.BLK.12.7MM 2P PCB TYPE GREEN

DG136T-12.7-02P-14-00AH TERM.BLK.12.7MM 2P PCB TYPE GREEN Description

DG136T-12.7-02P-14-00AH TERM.BLK.12.7MM 2P PCB TYPE GREEN DG136T-12.7-02P-14-00AH is a reliable and efficient PCB terminal that supports an operating temperature range of -40°C~+105°C. Designed for wire gauges 20-6 AWG (2.5-16.0 mm²). Constructed using PA66 housing, Copper Alloy+Ni Plated clamps, and None pins for durability. Manufactured by DEGSON with compliance to ROHS standards. Packaged in BULK packaging for secure handling.

DG136T-12.7-02P-14-00AH TERM.BLK.12.7MM 2P PCB TYPE GREEN Technical Specifications

• Manufacturer: DEGSON
• Series: DG136T
• Gender: Male
• WireTermination: Screw
• NumberofPins: 2 Pins
• NumberOfLevel: 1
• PositionsOfLevel: 2
• Pitch: 12.70mm
• MountingType: THT R/A
• WireEntry: 90°
• ProfileHeight: 29.30mm
• Current: 60.0A
• Voltage: 600V
• OperatingTemperature: -40°C~+105°C
• WireGauge(AWG): 20-6 AWG
• WireGauge(mm²): 2.5-16.0 mm²
• HousingMaterial: PA66
• ClampMaterial: Copper Alloy+Ni Plated
• PinMaterial: None
• Color: Green
• Side: None
• Rohs: ROHS
• BULK: BULK

---

You can click for product datasheet.
