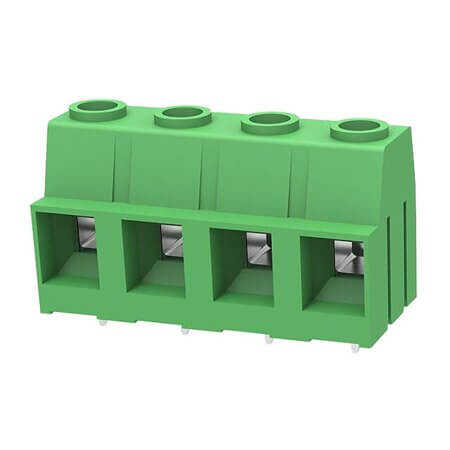

DG136HT-12.70-04P-14-00A TERM.BLK.12.70MM 4P PCB TYPE GREEN

DG136HT-12.70-04P-14-00A TERM.BLK.12.70MM 4P PCB TYPE GREEN Description

DG136HT-12.70-04P-14-00A TERM.BLK.12.70MM 4P PCB TYPE GREEN DG136HT-12.70-04P-14-00A is a reliable and efficient PCB terminal that supports an operating temperature range of -40°C~+105°C. Designed for wire gauges 20-6 AWG (2.5-16.0 mm²). Constructed using PA66+UL94V-0 housing, Brass+Ni Plated clamps, and Copper+Tin Plated pins for durability. Manufactured by DEGSON with compliance to ROHS standards. Packaged in BULK packaging for secure handling.

DG136HT-12.70-04P-14-00A TERM.BLK.12.70MM 4P PCB TYPE GREEN Technical Specifications

• Manufacturer: DEGSON
• Series: DG136HT
• Gender: None
• WireTermination: Screw
• NumberofPins: 4 Pins
• NumberOfLevel: 1
• PositionsOfLevel: 4
• Pitch: 12.70mm
• MountingType: THT V/T
• WireEntry: 180°
• ProfileHeight: 30.80mm
• Current: 50.0A
• Voltage: 600V
• OperatingTemperature: -40°C~+105°C
• WireGauge(AWG): 20-6 AWG
• WireGauge(mm²): 2.5-16.0 mm²
• HousingMaterial: PA66+UL94V-0
• ClampMaterial: Brass+Ni Plated
• PinMaterial: Copper+Tin Plated
• Color: Green
• Side: None
• Rohs: ROHS
• BULK: BULK

---

You can click for product datasheet.
