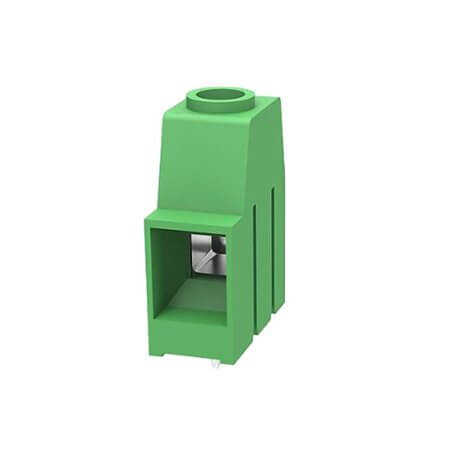

DG136HT-10.16-01P-14-00A TERM.BLK.10.16MM 1P PCB TYPE GREEN

DG136HT-10.16-01P-14-00A TERM.BLK.10.16MM 1P PCB TYPE GREEN Description

DG136HT-10.16-01P-14-00A TERM.BLK.10.16MM 1P PCB TYPE GREEN DG136HT-10.16-01P-14-00A is a reliable and efficient PCB terminal that supports an operating temperature range of -40°C~+105°C. Designed for wire gauges 20-6 AWG (2.5-16.0 mm²). Constructed using PA66+UL94V-0 housing, Copper Alloy+Ni Plated clamps, and Copper+Sn Plated pins for durability. Manufactured by DEGSON with compliance to ROHS standards. Packaged in BULK packaging for secure handling.

DG136HT-10.16-01P-14-00A TERM.BLK.10.16MM 1P PCB TYPE GREEN Technical Specifications

• Manufacturer: DEGSON
• Series: DG136HT
• Gender: Male
• WireTermination: Screw
• NumberofPins: 1 Pin
• NumberOfLevel: 1
• PositionsOfLevel: 1
• Pitch: None
• MountingType: THT V/T
• WireEntry: 180°
• ProfileHeight: 30.80mm
• Current: 65.0A
• Voltage: 1000V
• OperatingTemperature: -40°C~+105°C
• WireGauge(AWG): 20-6 AWG
• WireGauge(mm²): 2.5-16.0 mm²
• HousingMaterial: PA66+UL94V-0
• ClampMaterial: Copper Alloy+Ni Plated
• PinMaterial: Copper+Sn Plated
• Color: Green
• Side: None
• Rohs: ROHS
• BULK: BULK

---

You can click for product datasheet.
