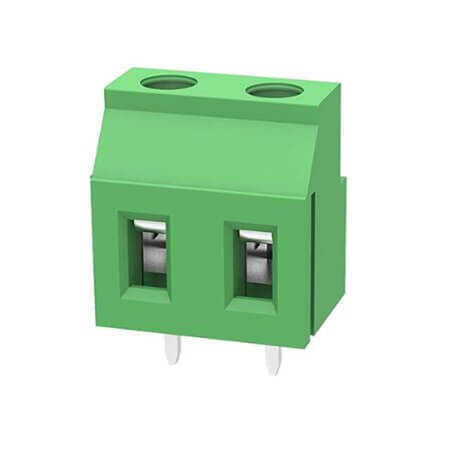

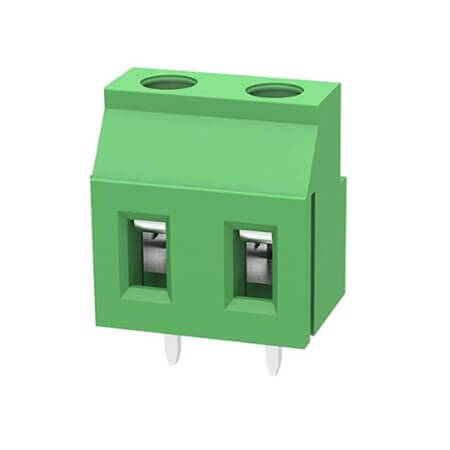

DG130-7.62-02P-14-00AH TERM.BLK.7.62MM 2P PCB TYPE GREEN

DG130-7.62-02P-14-00AH TERM.BLK.7.62MM 2P PCB TYPE GREEN Description

DG130-7.62-02P-14-00AH TERM.BLK.7.62MM 2P PCB TYPE GREEN DG130-7.62-02P-14-00AH is a reliable and efficient PCB terminal that supports an operating temperature range of -40°C~+105°C. Designed for wire gauges 26-12 AWG (0.5-2.5 mm²). Constructed using PA66+UL94V-0 housing, Brass+Ni Plated clamps, and Brass+Tin Plated pins for durability. Manufactured by DEGSON with compliance to ROHS standards. Packaged in BULK packaging for secure handling.

DG130-7.62-02P-14-00AH TERM.BLK.7.62MM 2P PCB TYPE GREEN Technical Specifications

• Manufacturer: DEGSON
• Series: DG130
• Gender: None
• WireTermination: Screw
• NumberofPins: 2 Pins
• NumberOfLevel: 1
• PositionsOfLevel: 2
• Pitch: 7.62mm
• MountingType: THT V/T
• WireEntry: 180°
• ProfileHeight: 18.00mm
• Current: 12.0A
• Voltage: 300V
• OperatingTemperature: -40°C~+105°C
• WireGauge(AWG): 26-12 AWG
• WireGauge(mm²): 0.5-2.5 mm²
• HousingMaterial: PA66+UL94V-0
• ClampMaterial: Brass+Ni Plated
• PinMaterial: Brass+Tin Plated
• Color: Green
• Side: None
• Rohs: ROHS
• BULK: BULK

---

You can click for product datasheet.
