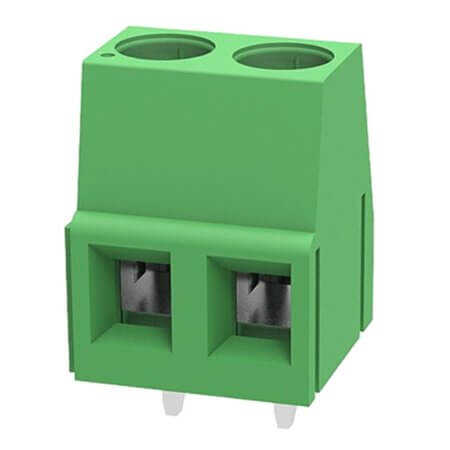

DG128-5.08-02P-14-1000AH TERM.BLK.5.08MM 2P PCB TYPE 1 BOY GREEN

DG128-5.08-02P-14-1000AH TERM.BLK.5.08MM 2P PCB TYPE 1 BOY GREEN Description

DG128-5.08-02P-14-1000AH TERM.BLK.5.08MM 2P PCB TYPE 1 BOY GREEN DG128-5.08-02P-14-1000AH is a reliable and efficient PCB terminal that supports an operating temperature range of -40°C~+105°C. Designed for wire gauges 30-12 AWG (0.2-2.5 mm²). Constructed using PA66+UL94V-0 housing, Copper Alloy clamps, and Copper Alloy+Sn Plated pins for durability. Manufactured by DEGSON with compliance to ROHS standards. Packaged in BULK packaging for secure handling.

DG128-5.08-02P-14-1000AH TERM.BLK.5.08MM 2P PCB TYPE 1 BOY GREEN Technical Specifications

• Manufacturer: DEGSON
• Series: DG128
• Gender: None
• WireTermination: Screw
• NumberofPins: 2 Pins
• NumberOfLevel: 1
• PositionsOfLevel: 2
• Pitch: 5.08mm
• MountingType: THT V/T
• WireEntry: 180°
• ProfileHeight: 14.00mm
• Current: 20.0A
• Voltage: 300V
• OperatingTemperature: -40°C~+105°C
• WireGauge(AWG): 30-12 AWG
• WireGauge(mm²): 0.2-2.5 mm²
• HousingMaterial: PA66+UL94V-0
• ClampMaterial: Copper Alloy
• PinMaterial: Copper Alloy+Sn Plated
• Color: Green
• Side: None
• Rohs: ROHS
• BULK: BULK

---

You can click for product datasheet.
