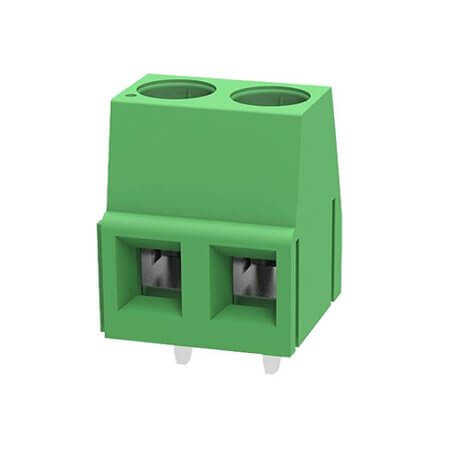

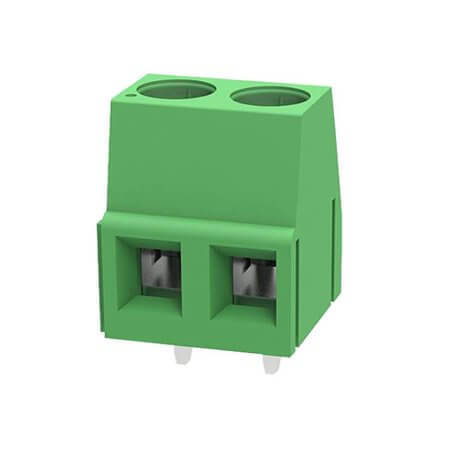

DG128-5.0-02P-24-05SH TERM.BLK.5.00MM 3P PCB TYPE 1 BOY MIDDLE GAOSONG

DG128-5.0-02P-24-05SH TERM.BLK.5.00MM 3P PCB TYPE 1 BOY MIDDLE GAOSONG Description

DG128-5.0-02P-24-05SH TERM.BLK.5.00MM 3P PCB TYPE 1 BOY MIDDLE GAOSONG DG128-5.0-02P-24-05SH is a reliable and efficient PCB terminal that supports an operating temperature range of -40°C~+105°C. Designed for wire gauges 24-12 AWG (2.5 mm²). Constructed using PA66+UL94V-0 housing, Brass+Ni Plated clamps, and Brass+Tin Plated pins for durability. Manufactured by DEGSON/GAOSONG with compliance to ROHS standards. Packaged in BULK packaging for secure handling.

DG128-5.0-02P-24-05SH TERM.BLK.5.00MM 3P PCB TYPE 1 BOY MIDDLE GAOSONG Technical Specifications

• Manufacturer: DEGSON/GAOSONG
• Series: DG128
• Gender: None
• WireTermination: Screw
• NumberofPins: 2 Pins
• NumberOfLevel: 1
• PositionsOfLevel: 2
• Pitch: 10.00mm(5.00+5.00)
• MountingType: THT V/T
• WireEntry: 180°
• ProfileHeight: 14.00mm
• Current: 15.0A
• Voltage: 300V
• OperatingTemperature: -40°C~+105°C
• WireGauge(AWG): 24-12 AWG
• WireGauge(mm²): 2.5 mm²
• HousingMaterial: PA66+UL94V-0
• ClampMaterial: Brass+Ni Plated
• PinMaterial: Brass+Tin Plated
• Color: Green
• Side: None
• Rohs: ROHS
• BULK: BULK

---

You can click for product datasheet.
