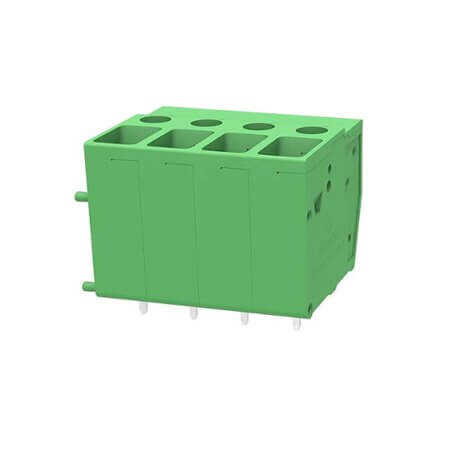

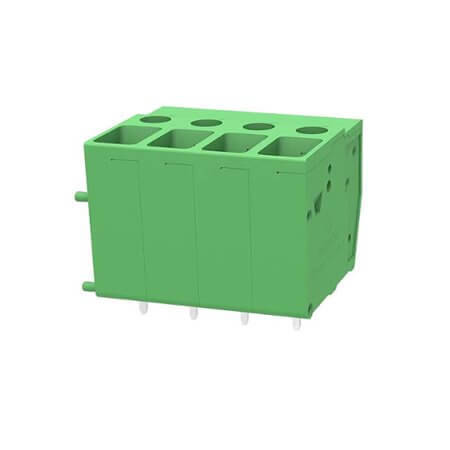

DG107V-7.62-04P-14-00AH TERM.BLK.7.62MM 4P PCB SPRING TYPE GREEN

DG107V-7.62-04P-14-00AH TERM.BLK.7.62MM 4P PCB SPRING TYPE GREEN Description

DG107V-7.62-04P-14-00AH TERM.BLK.7.62MM 4P PCB SPRING TYPE GREEN DG107V-7.62-04P-14-00AH is a reliable and efficient PCB terminal that supports an operating temperature range of -40°C~+105°C. Designed for wire gauges 24-8 AWG (0.2-6.0 mm²). Constructed using PA66 housing, Steel+Zn Plated clamps, and None pins for durability. Manufactured by DEGSON with compliance to ROHS standards. Packaged in BULK packaging for secure handling.

DG107V-7.62-04P-14-00AH TERM.BLK.7.62MM 4P PCB SPRING TYPE GREEN Technical Specifications

• Manufacturer: DEGSON
• Series: DG107V
• Gender: Male
• WireTermination: Screw
• NumberofPins: 4 Pins
• NumberOfLevel: 1
• PositionsOfLevel: 4
• Pitch: 7.62mm
• MountingType: THT V/T
• WireEntry: 180°
• ProfileHeight: 26.00mm
• Current: 40.0A
• Voltage: 300V
• OperatingTemperature: -40°C~+105°C
• WireGauge(AWG): 24-8 AWG
• WireGauge(mm²): 0.2-6.0 mm²
• HousingMaterial: PA66
• ClampMaterial: Steel+Zn Plated
• PinMaterial: None
• Color: Green
• Side: None
• Rohs: ROHS
• BULK: BULK

---

You can click for product datasheet.
