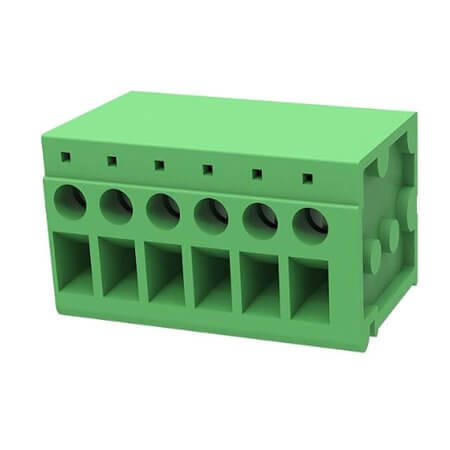

DG105R-5.0-06P-14-10AH TERM.BLK.5.00MM 6P PCB TYPE GREEN

DG105R-5.0-06P-14-10AH TERM.BLK.5.00MM 6P PCB TYPE GREEN Description

DG105R-5.0-06P-14-10AH TERM.BLK.5.00MM 6P PCB TYPE GREEN DG105R-5.0-06P-14-10AH is a reliable and efficient PCB terminal that supports an operating temperature range of -40°C~+105°C. Designed for wire gauges 24-14 AWG (0.5-2.5 mm²). Constructed using PA66+UL94V-0 housing, Steel+Zn Plated clamps, and Copper+Tin Plated pins for durability. Manufactured by DEGSON with compliance to ROHS standards. Packaged in BULK packaging for secure handling.

DG105R-5.0-06P-14-10AH TERM.BLK.5.00MM 6P PCB TYPE GREEN Technical Specifications

• Manufacturer: DEGSON
• Series: DG105R
• Gender: None
• WireTermination: Screw
• NumberofPins: 6 Pins
• NumberOfLevel: 1
• PositionsOfLevel: 6
• Pitch: 5.00mm
• MountingType: THT
• WireEntry: 180°
• ProfileHeight: 18.50mm
• Current: 12.0A
• Voltage: 300V
• OperatingTemperature: -40°C~+105°C
• WireGauge(AWG): 24-14 AWG
• WireGauge(mm²): 0.5-2.5 mm²
• HousingMaterial: PA66+UL94V-0
• ClampMaterial: Steel+Zn Plated
• PinMaterial: Copper+Tin Plated
• Color: Green
• Side: None
• Rohs: ROHS
• BULK: BULK

---

You can click for product datasheet.
