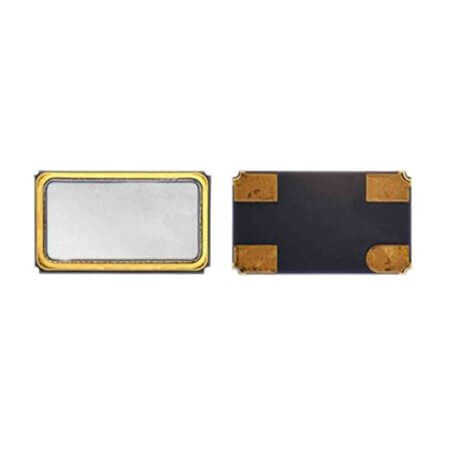

CX3225SB24576D0FLJCC CRYSTAL 24MHz 8pF 2.50X3.20MM SMD

CX3225SB24576D0FLJCC CRYSTAL 24MHz 8pF 2.50X3.20MM SMD Description

CX3225SB24576D0FLJCC CRYSTAL 24MHz 8pF 2.50X3.20MM SMD CX3225SB24576D0FLJCC is a high-performance crystal component that operates at a frequency of 24.576MHz with a frequency stability of ±15PPM.Features equivalent series resistance (ESR) of 50 Ohms. Compact dimensions: length 3.20mm, width 2.50mm, and height 0.60mm. Supports a temperature range of -30°C~+85°C for reliable performance. Manufactured by KYOCERA AVX with compliance to ROHS standards. Packaged as TAPE&REEL for convenience.

CX3225SB24576D0FLJCC CRYSTAL 24MHz 8pF 2.50X3.20MM SMD Technical Specifications

• Manufacturer: KYOCERA AVX
• MountingType: SMT
• Series: CX3225SB
• Package/Case: 4-SMD
• Frequency: 24.576MHz
• Capacitance: 8pF
• FrequencyTolerance: ±10PPM
• FrequencyStability: ±15PPM
• EquivalentSeriesResistance(ESR): 50 Ohms
• Applications:
• Diameter:
• Length: 3.20mm
• Width: 2.50mm
• Height: 0.60mm
• OperatingTemperature: -30°C~+85°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
