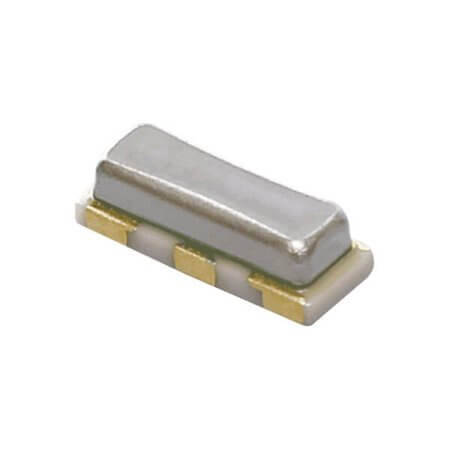

CSTNR4M00GH5L000R0 CRYSTAL 4MHZ 39pF SMD

CSTNR4M00GH5L000R0 CRYSTAL 4MHZ 39pF SMD Description

CSTNR4M00GH5L000R0 CRYSTAL 4MHZ 39pF SMD CSTNR4M00GH5L000R0 is a high-performance component offering features like frequency stability of ±0.11%, equivalent series resistance of 60 Ohms, and more. It comes in dimensions of 4.50mm x 2.00mm x 1.10mm and operates within a temperature range of -20°C~+85°C. Compliant with ROHS standards, it is packaged as TAPE&REEL for ease of use.

CSTNR4M00GH5L000R0 CRYSTAL 4MHZ 39pF SMD Technical Specifications

• Manufacturer: MURATA
• MountingType: SMT
• Series: CSTNR
• Package/Case: 3-SMD
• Frequency: 4MHz
• Capacitance: 39pF
• FrequencyTolerance: ±0.07%
• FrequencyStability: ±0.11%
• EquivalentSeriesResistance(ESR): 60 Ohms
• Applications: N/A
• Diameter: N/A
• Length: 4.50mm
• Width: 2.00mm
• Height: 1.10mm
• OperatingTemperature: -20°C~+85°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
